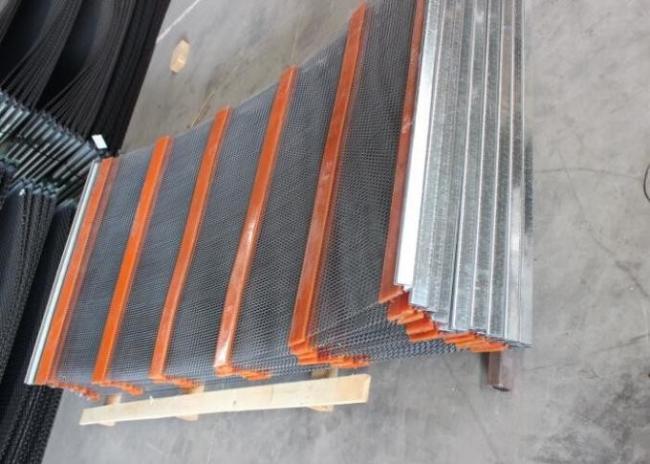

Carbon Steel 0.9mm Self Cleaning Screen Mesh Woven Wire Square Media With Polyurethane Bands
Carbon Steel Woven Wire Square Self Cleaning Screen Media With Polyurethane Bands
Quick Details
Square self cleaning screen is also called diamond opening self cleaning screen, it is our most popular self
cleaning screen. It has a good combination of screening capacity and precision. It can effectively prevent
materials to be screened from clogging, blinding and pegging. In addition, its smooth screen surface helps
increase the wear life of the screen significantly.
>Both carbon steel and stainless steel wires are available
>Both polyurethane cross bands and steel wire cross bands are available
>Providing precise and effective screening
>Preventing materials build-up, pegging and blinding
Specifications
Material: High carbon steel wire, spring steel wire, manganese steel and stainless steel.
Wire diameter: 0.9mm - 10mm.
Opening size: 2.24mm - 62mm
(Special size also could be customized as your request.)
Surface treatment: Galvanized or painted.
Edge: Hooked edge is available.
 |
 |
|
| Polyurethane can protect the binding wire and improve the wear resistance. | ||
| Item No | Opening(mm) | Wire(mm) | Item No | Opening(mm) | Wire(mm) | Item No | Opening(mm) | Wire(mm) |
| 1 | 2.24 | 0.9 | 57 | 8 | 4 | 113 | 18 | 6.3 |
| 2 | 2.5 | 1.2 | 58 | 8.2 | 4 | 114 | 18.41 | 5 |
| 3 | 2.5 | 1.6 | 59 | 8.5 | 2.5 | 115 | 18.5 | 4 |
| 4 | 2.75 | 2 | 60 | 9 | 2 | 116 | 19 | 3.15 |
| 5 | 3 | 1.2 | 61 | 9 | 2.5 | 117 | 19 | 4 |
| 6 | 3 | 1.6 | 62 | 9 | 3 | 118 | 19.05 | 4.88 |
| 7 | 3 | 1.8 | 63 | 9 | 3.15 | 119 | 19.05 | 5.26 |
| 8 | 3.15 | 1.25 | 64 | 9.5 | 2.5 | 120 | 20 | 3.15 |
| 9 | 3.15 | 1.6 | 65 | 9.5 | 4 | 121 | 20 | 4 |
| 10 | 3.15 | 2 | 66 | 9.53 | 3.05 | 122 | 20 | 5 |
| 11 | 3.5 | 1.6 | 67 | 9.53 | 3.43 | 123 | 20 | 6.3 |
| 12 | 3.5 | 2 | 68 | 9.53 | 3.76 | 124 | 20 | 8 |
| 13 | 3.71 | 1.25 | 69 | 10 | 2.5 | 125 | 20.63 | 5.72 |
| 14 | 4 | 1.6 | 70 | 10 | 3.15 | 126 | 20.64 | 4.5 |
| 15 | 4 | 2 | 71 | 10 | 4 | 127 | 21.85 | 3.15 |
| 16 | 4 | 2.5 | 72 | 10 | 5 | 128 | 22 | 4 |
| 17 | 4.41 | 2 | 73 | 10.46 | 4 | 129 | 22.23 | 4.88 |
| 18 | 4.5 | 1.6 | 74 | 10.96 | 3.15 | 130 | 22.23 | 5.26 |
| 19 | 4.5 | 2.5 | 75 | 11.2 | 2.5 | 131 | 22.23 | 5.72 |
| 20 | 4.76 | 1.37 | 76 | 11.2 | 3.76 | 132 | 22.4 | 4 |
| 21 | 4.76 | 1.83 | 77 | 11.2 | 4 | 133 | 22.4 | 5 |
| 22 | 4.76 | 2.03 | 78 | 11.2 | 5 | 134 | 22.4 | 6.3 |
| 23 | 5 | 1.6 | 79 | 11.5 | 5 | 135 | 22.4 | 8 |
| 24 | 5 | 2 | 80 | 12 | 2.5 | 136 | 23.81 | 4.88 |
| 25 | 5 | 2.34 | 81 | 12 | 3.15 | 137 | 24 | 3.15 |
| 26 | 5 | 2.5 | 82 | 12 | 4 | 138 | 24 | 4 |
| 27 | 5 | 3.15 | 83 | 12 | 5 | 139 | 25 | 3.15 |
| 28 | 5.3 | 3.15 | 84 | 12.5 | 3.15 | 140 | 25 | 4 |
| 29 | 5.4 | 2 | 85 | 12.5 | 4 | 141 | 25 | 5 |
| 30 | 5.5 | 3.15 | 86 | 12.5 | 5 | 142 | 25 | 6.3 |
| 31 | 5.6 | 2 | 87 | 12.7 | 3.05 | 143 | 25 | 8 |
| 32 | 5.6 | 2.5 | 88 | 12.7 | 3.15 | 144 | 25.35 | 5.72 |
| 33 | 5.6 | 2.8 | 89 | 12.7 | 3.76 | 145 | 25.4 | 4 |
| 34 | 6 | 2 | 90 | 12.7 | 4.11 | 146 | 25.4 | 4.11 |
| 35 | 6 | 2.5 | 91 | 12.92 | 5 | 147 | 26.5 | 6.3 |
| 36 | 6 | 3 | 92 | 13 | 3.15 | 148 | 27 | 6.3 |
| 37 | 6 | 3.15 | 93 | 13.2 | 2.5 | 149 | 28 | 4 |
| 38 | 6.3 | 1.6 | 94 | 13.2 | 3.15 | 150 | 28 | 5 |
| 39 | 6.3 | 2 | 95 | 13.2 | 4 | 151 | 28 | 6.3 |
| 40 | 6.3 | 2.5 | 96 | 13.5 | 6.3 | 152 | 28.34 | 5.72 |
| 41 | 6.3 | 3.15 | 97 | 14 | 2.5 | 153 | 29.6 | 6.3 |
| 42 | 6.35 | 1.83 | 98 | 14 | 3.15 | 154 | 30 | 6.3 |
| 43 | 6.35 | 2.34 | 99 | 14 | 4 | 155 | 31.5 | 6.3 |
| 44 | 6.35 | 2.67 | 100 | 14 | 5 | 156 | 35.5 | 6.3 |
| 45 | 6.35 | 3 | 101 | 14.29 | 4.11 | 157 | 36 | 10 |
| 46 | 6.8 | 3 | 102 | 15 | 3.15 | 158 | 38.1 | 6.3 |
| 47 | 7 | 2 | 103 | 15 | 4 | 159 | 40 | 8 |
| 48 | 7.1 | 2.5 | 104 | 15.88 | 4.11 | 160 | 40 | 10 |
| 49 | 7.1 | 3.15 | 105 | 16 | 3.15 | 161 | 45 | 8 |
| 50 | 7.1 | 4 | 106 | 16 | 4 | 162 | 45 | 10 |
| 51 | 7.5 | 2.5 | 107 | 16 | 5 | 163 | 50 | 10 |
| 52 | 7.94 | 2.67 | 108 | 17 | 3.15 | 164 | 55 | 10 |
| 53 | 8 | 2 | 109 | 17.46 | 4.11 | 165 | 62 | 10 |
| 54 | 8 | 2.5 | 110 | 17.5 | 3.15 | 164 | 55 | 10 |
| 55 | 8 | 2.8 | 111 | 18 | 4 | 165 | 62 | 10 |
| 56 | 8 | 3.15 | 112 | 18 | 5 |
Features Of Square Self Cleaning Screen Media
 |
1. Eliminate blinding and clogging 2. Higher open area than traditional square mesh 3. Increase production and lower costs 4. Accurate sizing 5. Wear resistance, corrosion resistance 6. High screening efficiency – up to 40 % more throughput |
Control strictly for the sizing.
Self-cleaning ability and less maintenance.
Reduce the blinding and plugging.
Wear and abrasion resistance.
Producing tighter specifications and having the ability to self-clean.
Customized width and length is available.
Applications
Square self cleaning screen media effective screening all kind size of the most wet, moist material using in mining,
quarry, aggregate processing industries.
Package
1. 20 pieces per wooden pallets. 2.25pallets per 20ft container 3. to be your request
 |
 |
