14 Gauge Stainless Steel Lacing Anchors Used To Secure Reusable Insulation Blanket

Stainless steel lacing anchors are designed to secure removable and reusable insulation blankets, covers, and joints. These fasteners are widely used for thermal insulation of pipelines and equipment in petrochemical, chemical, power, pharmaceutical, and food processing industries.

• Available in stainless steel (also offered in mild steel upon request)
• Stamped "no ab" to denote 'no asbestos'

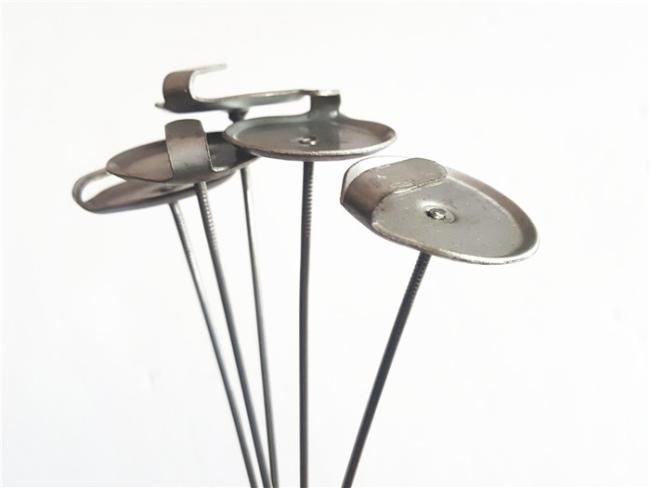

Mini Round Head Lacing Anchors Material: Stainless Steel Head Diameter: 7/8", 22mm Head Thickness: 1.0mm Pin Diameter: 12Gauge (2.7mm) or 14Gauge (2.0mm) Pin Length: 2-1/2" (63.5mm) or 4-1/2" (114mm) Hook Size: 5x11mm Custom sizes available	Round Head Lacing Anchors Material: Stainless Steel Head Diameter: 30mm Head Thickness: 1.3mm Pin Diameter: 11Gauge (3mm), 12Gauge (2.7mm), or 14Gauge (2.0mm) Pin Length: 2-1/2" (63.5mm) or 4-1/2" (114mm) Hook Size: 5x11mm Custom sizes available
Rectangle Head Lacing Anchors Material: Stainless Steel Head Diameter: 20x25mm Head Thickness: 1.0mm Pin Diameter: 12Gauge (2.7mm) or 14Gauge (2.0mm) Pin Length: 2-1/2" (63.5mm) or 4-1/2" (114mm) Hook Size: 5x11mm Custom sizes available

1. Prepare the insulation blanket or removable cover
2. Press the lacing anchor through the insulation
3. Press the self-locking washer into the pin to fasten the insulation
4. Bend over or clip off the pin
5. Install the insulation blanket or removable cover
6. Lace the hook with lacing tie to secure the insulation

• Exhaust insulation blankets
• Fabric expansion joints
• Temptec exhaust blankets
• Mat insulation
• Thermal insulation covers
• Cooling insulation covers
• Heat insulation covers
• Freeze protection covers
• Removable insulation covers
• Tank insulation covers
• Flange leak insulation covers
• Offshore production covers
• Heat-shield insulation blankets
• Removable insulation jackets

Available in 250pcs, 500pcs, or 1000pcs per carton (depending on pin size), with 48 cartons per pallet.
