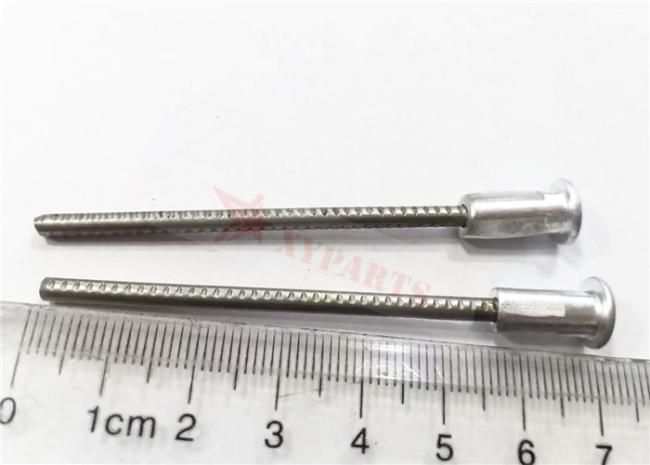

3x70mm Capacitors Discharge Insulation Bi Metallic Pins With Aluminum Base

The Capacitors Discharge Insulation Bi Metallic Pins are primarily designed as welded

fasteners to secure blanket and board insulation to metal heating and air conditioning ducts,

ovens, tanks and other hot or cold equipment.

Factory: Hebei Huihao Company Name: Capacitors Discharge Insulation Bi Metallic Pins With Aluminum Base Base Material: Aluminum Alloy Base Size: 6mmx15mm Flange Width: 8mm Pin Material: Stainless Steel Pin Diameter: 3mm Pin Length: 70mm Features: 1. high welding quality 2. easy to weld 3. quick mounting 4. installable in all positions 5. fire-resistant

The below size is most popular in market. other sizes can be make too.

FAQ Of Capacitors Discharge Insulation Bi Metallic Pins

1. Insulation Bi Metallic Pins have an aluminum weld base designed to be welded to thin gauge

aluminum sheet material using the Capacitors Discharge welding process, but may also be

welded with the Short Cycle Drawn Arc weld process on thicker aluminum plate..
2. Insulation Bi Metallic Pins are designed tip ignition according to the capacitors discharge

welding process.
3. The stud flange is designed according to EN ISO 13918.

4. The base material is aluminum alloy with enough hardness.

5. The pins material is stainless steel or copper coated mild steel
6. Self-Locking washers are available in a variety of sizes, shapes and materials.

Accessories Of The Capacitors Discharge Insulation Bi Metallic Pins

38mm self locking washers for 3mm or 5mm pins material: stainless steel or galvanized steel	38mm self locking washers for 3mm pins material: stainless steel or galvanized steel
30mm dome cap washers for 3mm pins material: stainless steel or galvanized steel	22 dome cap washers for 14GA pins material: stainless steel or galvanized steel

Package Of The Capacitors Discharge Insulation Bi Metallic Pins

1. 100 pcs ,200 pcs ,300pcs ,500 pcs in one plastic bag (according the pin length ),

2. 10 bags in one carton box,

3. then in one pallet

4. the package can be can according your request
