3mm Bi-Metallic Capacitor Discharge (CD) Pins With Self Locking Washers

Quick Details Of The Bi-Metallic Capacitor Discharge (CD) Pins

Bi-Metallic Capacitor Discharge (CD) Pins are made of 5000 series aluminum base and mild

steel or stainless steel pins. 3mm is common diameter and 4mm, 5mm, 6mm also could be

customized acoording to your request.

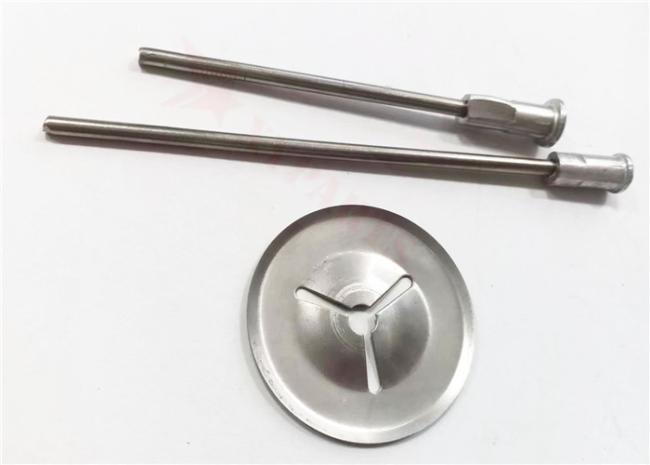

Factory: Hebei Huihao Company Name: Bi-Metallic Capacitor Discharge (CD) Pins Base Material: 5000 Series Aluminum Base Size: 6mmx15mm Flange Width: 8mm Pin Material: Stainless Steel Pin Diameter: 3mm Pin Length: 50mm, 65mm, 85mm, 110mm, etc.	Factory: Hebei Huihao Company Name: Bi-Metallic Capacitor Discharge (CD) Pins Base Material: 5000 Series Aluminum Base Size: 6mmx15mm Flange Width: 8mm Pin Material: Copper Coated Mild Steel Pin Diameter: 3mm Pin Length: 50mm, 65mm, 85mm, 110mm, etc.

Features:

1. high welding quality

2. easy to weld

3. quick mounting

4. installable in all positions

5. fire-resistant

The below size is most popular in market. other sizes can be make too.

FAQ Of The Bi-Metallic Capacitor Discharge (CD) Pins

1. The pins are primarily designed as welded fasteners to secure blanket and board insulation

to metal heating and air conditioning ducts, ovens, tanks and other hot or cold equipment.
2. The Bi-Metallic Capacitor Discharge (CD) Pins have an aluminum weld base designed to be

welded to thin gauge aluminum sheet material using the Capacitors Discharge welding process,

but may also be welded with the Short Cycle Drawn Arc weld process on thicker aluminum plate.
3. The Bi-Metallic Capacitor Discharge (CD) Pins are designed tip ignition according to the

capacitors discharge welding process.
4. The stud base is designed according to EN ISO 13918.

5. The base material is 5000 series aluminum alloy with enough hardness.

6. The pins material is stainless steel or copper coated mild steel
7. Self-Locking washers are available in a variety of sizes, shapes and materials.

Advantage Of Huihao Hardware Mesh Product Limited.

Cooperate with us, we can ensure:

1: Competitive price: we sale what we manufacture.

2: On-time delivery: we have the auto-production line to ensure the on-time delivery.

3: Excellent quality: we have rich experience for the cd weld pins, our products are in line with

international standard.

4: Good after-sale service: we offer good after-sale service for each order.

Package Of The Bi-Metallic Capacitor Discharge (CD) Pins

1. 100 pcs ,200 pcs ,300pcs ,500 pcs in one plastic bag (according the pin length ),

2. 10 bags in one carton box,

3. then in one pallet

4. the package can be can according your request
