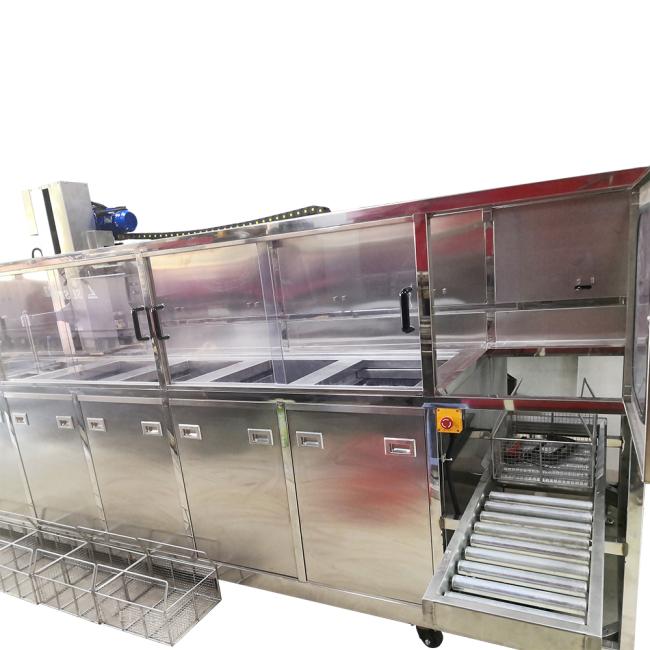

Mechanical Arm Full-Automatic Cleaner Ultrasonic Disinfect Drying For Medical Instrument ​

BATH 1: Pre-cleaning and Hot Degreasing

Complete removal of various forms of surface contamination

(oils, grease, sludge, residual fluids, etc...) by means of ultrasound and hot cleaning solutions.

BATH 2: Rinsing, Grease/Cleaning

Solution Removal

Rinsing of residual grease/dirt and cleaning solution from the component to avoid cross contamination of subsequent bath.

BATH 3: Corrosion Removal

Complete removal of the corrosion at 55˚C using ultrasound and a gentle, slightly acidic complex de-ruster. Suitable for hardened or polished surfaces.

BATH 4: Rinsing and Acid Neutralization

Residual acid and removed corrosion residue are rinsed off. Prepares component for final step.

BATH 5: Water Displacement and Preservation

Water displacement and passivating agents ensure that the metal surfaces do not rust upon exposure to air

Single manipulator or combination of multiple manipulators to realize high requirement of cleaning;
Fully controlled PLC and operational interface with touch screen for easy operation and control;
Automatic feeding and discharging station to accurately re-assemble/disassemble working pieces;

Mechanical Arm Full-Automatic Cleaner Ultrasonic Disinfect Drying For Medical Instrument

1.Tank size :Customized made

2.Cleaning process:

loading,ultrasonic cleaning, ultrasonic rinse,D.I.dehydration,drying,unloading.

(ultrasonic cleaning and ultrasonic rinse time according to requirements)

3.Cleaning agent: Aqueous (environment friendly)

4.Main assemblies:

Auto workpieces in and out device,

auto agitation,

auto conveyance with mechanical arm,

auto lift,

electrical heating,

auto temperature control,

auto water level control inspection,

air purification,

cooling and dehumilification device,

hot air drying,

ultrasonic units, recycling filtration,

PLC control, LCD contact screen
