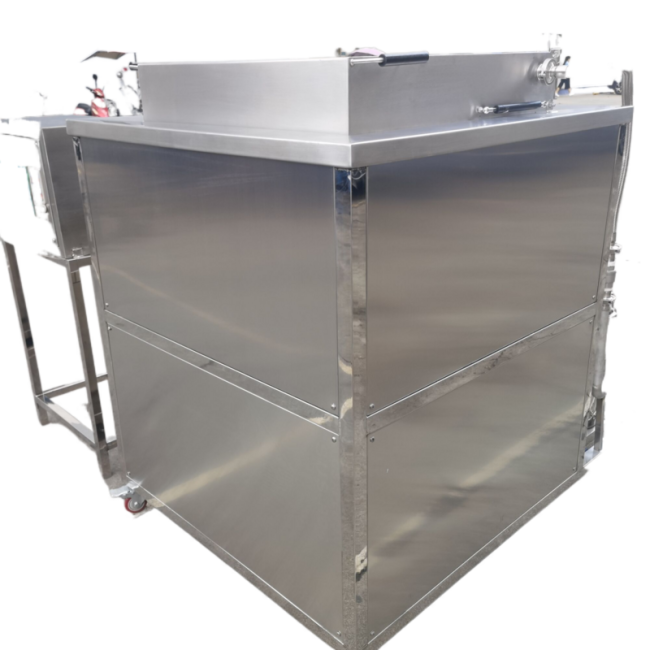

Industrial Rotary Table Ultrasonic Washing Machine For Automatic Metal Parts Engine Parts
Industrial Rotary Table Automatic Metal Parts Washing Machine Washer For Engine Parts
FEATURES AND OPTIONS
Rotary table washers can be configured to meet a variety of parts cleaning or process needs. Typical cycles include heated wash, rinse and blow-off, with additional stages available. Typical rotating table sizes range from 36 to 72 inches in diameter with custom sizes available
Rotary Parts Washers are ideal for cleaning parts quickly and efficiently without the need for dangerous solvents. The units were designed with ease of ue, power savings, time savings, and overall cost effectiveness in mind.
The fully enclosed cleaning process includes a rotating basket with high pressure jets of cleaning fluid to efficiently clean parts without wasting production time.
Different length wash cycles can be set depending on the degree of dirt build up.
Standard Features
The Rotary Parts Washers come with the following standard features:
- Tank floor tilted to drain valve
- 240-volt power control box
- Spray bars
- Forklift compatible
- Lid seal
- Heat On light
- Power On light
- Insulated cabinet
- Cycle timer
Specifications
| MODEL | Ag sONIC Part wash |
| Depth | 1550mm |
| Length | 1100mm |
| Height | 1382mm |
| Weight | 130Kg(250lbs-300lbs) |
| Basket Diameter | 610 mm (24 inches ) |
| Working Height | 310 mm (12 inches ) |
| Tank Capacity | 94L (25gallons) |
| Basket Load | 130Kg(250lbs-300lbs) |
| Power | 230V/ 380V |
| Pump Power | 2 kW |
| Pump Flow | 130 Lts/min |
| Working Pressure | 3.5 bar |
| Number of Nozzles | 24 Units |
| Motor-Driven Basket | 5HP- |
| Oil Skimmer | - |
