360L 28KHZ Moulds Automatic Ultrasonic Cleaner Power Lift With Agitation

Price Negotiable
Price: negotiation
MOQ: negotiation
Delivery Time: 15 working days
Brand: AG SONIC
Product Description



Automatic Ultrasonic Cleaner Power Lift With Agitation For Moulds Tools Dies



Ultrasonic cleaning is a fast and highly effective way for cleaning moulds, tools and dies. Its ability to remove swarf, grease, oil and lubricants from hard to reach areas makes it one of the most effective and environmentally friendly way for these parts and components.

Find the equipment you need using the calculator and product filter



The use of ultrasonic cleaner for automotive maintenance has been effectively employed for many years. As a non-contact method, auto detail is not damaged during cleaning and critical tolerances can be maintained, extending auto life. The high cleanliness level achieved with ultrasonics results in better part release and longer runs. This improves productivity and reduces scrap. The penetrating nature of ultrasonic cleaning removes residual polymer, Gold Washing Machine With Vibration To Clean Die Mold auto release and outgas residue extending the auto life.

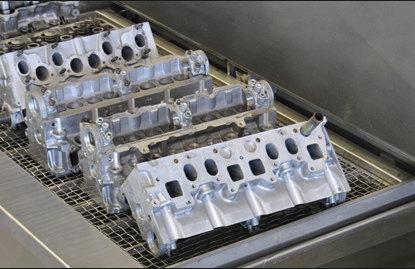

Ultrasonic cleaner removes carbonization, mould release, gassing, flashing, and other residues from auto parts in as little as 15-20 minutes.





Mainly application:



Applied for ultrasonic cleaning of engine parts, block,Semiconductor wafer, optical glass, clocks, beads and any other plastic, metal parts, anyway, the cleaning parts can immerse into the water without damage.



Specifications of the automotive ultrasonic cleaner



Specifications for ultrasonic cleaner AG-720ST
Model AG-720ST
Tank capacity 360L
Tank size 1000x600x600mm
Unit size 1140x740x820mm
Tank material 2mm SUS304
Ultrasonic power 3600W
Heating power 9KW
Timer 1-99min adjustable
Heater 0-80c adjustable
Frequency 28/40khz
Control External generator, more stable
Optional Oil filter system, pneumatic lift, rinsing tank, etc.
Voltage 110V, 1phase; 220V, 3phases/220V, 1phase; 380V, 3phases
Warranty 1 year
Packing 1unit/wooden case





High-efficiency ultrasonic generators and transducers
Simplified, reliable solid-state design
Early-warning filter change alarms
User-friendly color touchpad operator interface
Built-in diagnostic and status indicators
Cycle progress indicators



Other models for your choice:

Model Tank size Unit size Volume Ultrasonic power Frequency Heating power Timer Heating temperature
LxWxH(mm) LxWxH(mm) (L) (W) (kHz) (KW) (MIN) ()
AG-120ST 500x300x250 640x440x470 38 600 28/40 1.5 1-99











0-80

AG-180ST 500x350x350 640x490x570 61 900 1.5
AG-240ST 550x400x400 690x540x620 88 1200 3
AG-300ST 600x450x400 740x590x620 108 1500 3
AG-360ST 600x500x450 740x640x670 135 1800 4.5
AG-480ST 700x500x500 840x640x720 175 2400 6
AG-600ST 800x600x550 940x740x770 264 3000 7.5
AG-720ST 1000x600x600 1140x740x820 360 3600

9
