AG SONIC Optical And Optical Glass Ultrasonic Cleaner Stainless Steel 800ml 30W TB-30
AG SONIC Optical And Optical Glass Ultrasonic Cleaner Stainless Steel 800ml 30W TB-30
- Car service: Flushing carburetors, injectors, injectors, fuel filter mesh cleaning (petrol), individual parts, assemblies, and entire blocks.
- Medicine: Washing and polishing of optics, sterilization and cleaning of surgical instruments, vials, dental and pharmaceutical industries; cleaner reusable, molds.
- Engineering: Cleaning of parts, pipes, wires, etc. before finishing, machining parts and components to the preservation, processing of parts after reopening, welding, grinding, polishing, cleaning strainers in the fuel and hydraulic systems, deburring parts.
- Instrumentation: Washing and polishing of optics, precision mechanics components, integrated circuits and printed circuit boards.
Features:

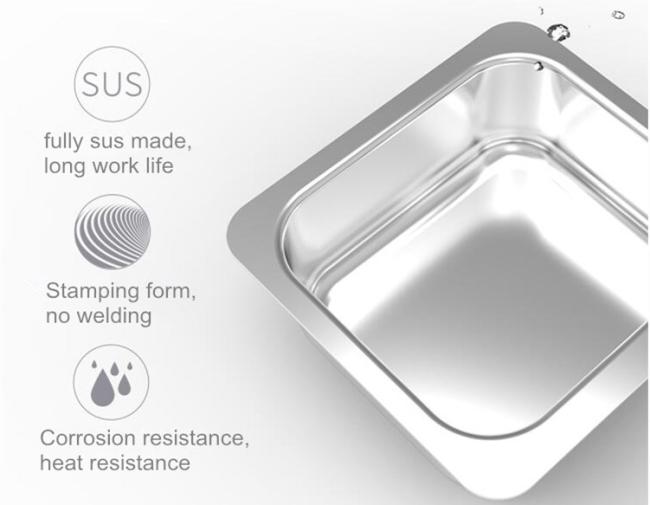

1. Stainless steel tank has resistance to wear and long work life.
2. With BLT type industrial ultrasonic transducer
3. with Stainless steel basket
4. Use just tab water, or industrial alcohol and solvent cleaner for higher cleaning requirement
5. Industrial control chip microcontroller. Flexible circuit boards control, more secure & stable
Model : TB-30 details:
| Model | TB-30(digital, power adjustable) |
| Description | digital ultrasonic cleaner |
| Material | SUS304 |
| Package | Carton |
| Tank size | 150×85×65mm |
| Unit size | 180×110×130mm |
| Carton packing | 245x174x165mm |
| Ultrasonic power | 30W |
| timer | 0~30min adjustable |
| Frequency | 40KHz |
| Tank capacity | 800ml |
| pcs/carton | 12PCS/carton |
| N.W. | 0.9 kg |
| G.W. | 1.1kg |
| Warranty | 1 year |
| Certificate | CE |
Other models for your choice:
| Model | Tank size | Unit size | Volume | Actual ultrasonic power | Rated ultrasonic power | Ultrasonic frequency | Heating power | Timer | Heating temperature |
| LxWxH(mm) | LxWxH(mm) | (L) | (W) | (W) | (kHz) | (W) | (MIN) | (℃) | |
| TB-30 | 150x85x65 | 175x110x125 | 0.8 | 30 | 30 | 40 | no | 1-30 | no |
| TC-50 | 150x135×100 | 175x160x210 | 2 | 50 | 60 | 40 | 150 | 1-30 | 0-80 |
| TC-100 | 240x135x100 | 265x165x220 | 3.2 | 100 | 120 | 150 | |||
| TC-150A | 300x150x100 | 325x180x225 | 4.5 | 150 | 180 | 300 | |||
| TC-150B | 300x150x150 | 325x180x280 | 6.5 | 150 | 180 | 300 | |||
| TC-200 | 300x240x150 | 325x265x280 | 10.8 | 200 | 240 | 450 | |||
| TC-300 | 330x300x150 | 360x325x285 | 15 | 300 | 360 | 450 | |||
| TC-400 | 500x300x150 | 530x325×285 | 22 | 400 | 480 | 600 | |||
| TC-500 | 500x300x200 | 530x325x325 | 30 | 500 | 600 | 600 |
FAQ:
Q: What is the duration of time cleaning?
A.: Cleaning time will vary, depending on factors such as soil, solution, the degree of cleanliness
Q.: What is the purpose of the unit heater?
A.: The primary purpose of the unit heater is to maintain the solution temperature between cleaning cycles. The tremendous energy released by cavitation generates heat for cleaning.
Q: Why is Ultrasonic Cleaning so Efficient and Effect?
A: When cavitation happens near a dirty object, the vacuum action produced by those million of bubbles constantly imploding creates a tiny pressure wave that reaches deep into every nook and cranny of even the most delicate items. This tiny pressure wave dislodges and breaks up the dirt and other contaminants and gently lifts it away. The result is very fast and effective cleaning.
Back machine:
