40kHz Ultrasonic Transducer Generator with Rigid Pipe 1200W for 120L Tank
40kHz Ultrasonic Transducer Generator with Rigid Pipe 1200W for 120L Tank
Specifications:
| TZ-1003 | SUS304/SUS316L | 3 | 15 | 250x150x100 | Rigid tube/ Flexible tube |
28/40 | 150 |
| TZ-1006 | 6 | 30 | 305x250x100 | 300 | |||
| TZ-1012 | 12 | 60 | 355x250x100 | 600 | |||
| TZ-1018 | 18 | 90 | 406x305x100 | 900 | |||
| TZ-1024 | 24 | 120 | 500x355x100 | 1200 | |||
| TZ-1030 | 30 | 150 | 550x406x100 | 1500 | |||
| TZ-1036 | 36 | 180 | 500x460x100 | 1800 |
Introduction:
Submersible transducers are designed to be flexible and portable,which can be immersed into your existing tank. For maximum flexibility, AG SONIC can provide submerible transducers to almost any shape or size without prohibitive prices.
Generally speaking, one transducers can control at most 3-5L water, and one generator can control at most 36pcs transducers. So customers can calculate the number of transducers that needed according to the tank capacity.
Features:
- Submersed in liquid, by bottom-mounting or wall-mounting
- Replaceable, expandable, renewable by submersible transducer module
- Customized to solve different problems with different frequency, power, shape, size etc accordingly
- Multi-frequencies are available by identical transducer or different models of transducer
- Full SUS304 to extand the lifespan
- For PCB,Electronic parts cleaning
Advantages:
- Material: SUS304/316L with 2.5mm thickness
- Durability and resistance: coated with Hard Chrome plating
- High intensity and efficiency BLT type transducers
- Easy and convenient to put in different tanks
- Various install methods:
Place on wall (flexible/rigid tube or flange hole)
Place on corner (suitable in the absence of lateral space)
Place on bottom (flexible/rigid tube or flange hole)
Applications:
| Industry | Cleaning objects | |
| machinery | Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools | |
| electronics | PCB board, electronic parts, TV parts, computer parts | |
| Auto industry | engine parts, gear box, shock absorber, auto nozzle, cylinder, valve | |
| Plating& painting | polishing parts, SUS cutter, tableware, plating | |
| Food industry | Oven tray, boiler, bottles, bottle cap, filters | |
| Optical& watch maker |
optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch band, |
|
| others | seal, flapper, coins, pottery, bank card, IGBT |
FAQ:
Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects.
28kHz frequency is stronger, better for car/motor/truck/vessel parts clean (remove oils, grease, pastes, etc. )
40kHz is better for pcb boards, electronic parts, etc.
Higher precision goods, higher frequency.
Q: Can ultrasonic cleaning damage parts?
A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe.
No damage to your daily objects.
Q: What cleaning solution should I use?
A: A large variety of different formulas designed for specific applications. Proper selection is crucial for
acceptable cleaning activity and to prevent unwanted reactions with the workpiece.

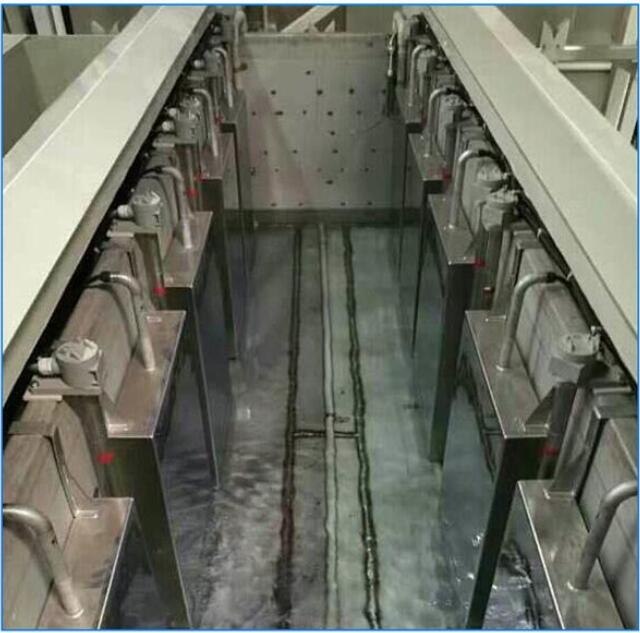

Ultrasonic transducers are working:
