40KHz Submersible Transducer Ultrasonic Cleaner For Condenser / Radiator / Cooler
40KHz Submersible Transducer Ultrasonic Cleaner For Condenser / Radiator / Cooler
Generally speaking, one transducers can control at most 3-5L water, and one generator can control at most 36pcs transducers. So customers can calculate the number of transducers that needed according to the tank capacity.
Specification details:
Ultrasonic transducer box size (mm):550x450x100(LXWXH)
Housing material: SUS304/SUS316L
Surface finishing: Hard-Cr plating treatment (20+microns)
Ultrasonic frequency: 28KHz / 40KHz
Ultrasonic transducers: 36pcs
Ultrasonic power: 1800W
Electronic generator: JM-1800, Ultrasonic generator work separately control transducers
power supply: AC 110V/220V or 220/240V, 1,13AMP
Specifications:
| Model | Material | Transducers | Estimated volume | Box size | Cable lead-out |
Ultrasonic frequency | Ultrasonic power |
| (mm) | (pcs) | (L) | (mm) | (kHz) | (W) | ||
| TZ-1003 | SUS304/SUS316L | 3 | 15 | 250x150x100 | Rigid tube/ Flexible tube |
28/40 | 150 |
| TZ-1006 | 6 | 30 | 305x250x100 | 300 | |||
| TZ-1012 | 12 | 60 | 355x250x100 | 600 | |||
| TZ-1018 | 18 | 90 | 406x305x100 | 900 | |||
| TZ-1024 | 24 | 120 | 500x355x100 | 1200 | |||
| TZ-1030 | 30 | 150 | 550x406x100 | 1500 | |||
| TZ-1036 | 36 | 180 | 500x460x100 | 1800 |
Features:
- Submersed in liquid, by bottom-mounting or wall-mounting
- Replaceable, expandable, renewable by submersible transducer module
- Customized to solve different problems with different frequency, power, shape, size etc accordingly
- Multi-frequencies are available by identical transducer or different models of transducer
- Full SUS304 to extand the lifespan
- For PCB,Electronic parts cleaning
Advantages:
- Material: SUS304/316L with 2.5mm thickness
- Durability and resistance: coated with Hard Chrome plating
- High intensity and efficiency BLT type transducers
- Easy and convenient to put in different tanks
- Various install methods:
Place on wall (flexible/rigid tube or flange hole)
Place on corner (suitable in the absence of lateral space)
Place on bottom (flexible/rigid tube or flange hole)
Applications:
| Industry | Cleaning objects | |
| machinery | Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools | |
| electronics | PCB board, electronic parts, TV parts, computer parts | |
| Auto industry | engine parts, gear box, shock absorber, auto nozzle, cylinder, valve | |
| Plating& painting | polishing parts, SUS cutter, tableware, plating | |
| Food industry | Oven tray, boiler, bottles, bottle cap, filters | |
| Optical& watch maker |
optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch band, |
|
| others | seal, flapper, coins, pottery, bank card, IGBT |
FAQ:
Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects.
28kHz frequency is stronger, better for car/motor/truck/vessel parts clean (remove oils, grease, pastes, etc. )
40kHz is better for pcb boards, electronic parts, etc.
Higher precision goods, higher frequency.
Q: Can ultrasonic cleaning damage parts?
A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe.
No damage to your daily objects.
Q: What cleaning solution should I use?
A: A large variety of different formulas designed for specific applications. Proper selection is crucial for
acceptable cleaning activity and to prevent unwanted reactions with the workpiece.

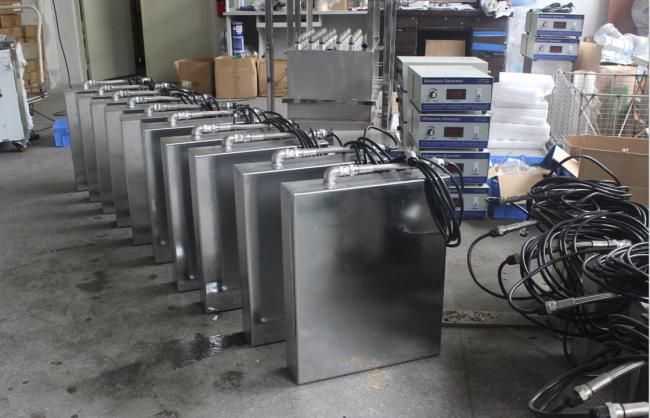

Mass production:
