Ultrasonic Cleaning System With A Tank Of High Power And A Passivating Tank
Aircraft Wheel Hub Industrial Automotive Ultrasonic Cleaner With Electric Lifting
01: Introduction for Ultrasonic cleaner
Ultrasonic cleaning is a technology that uses high frequency sound waves (ultrasonic: above the range of human hearing) to agitate an aqueous or organic medium (cleaning chemistry) that in turn acts on contaminations adhering to substrates like metals, plastics, glass, rubber and ceramics. Contaminants can be dust, dirty, oil, pigments, grease, polishing compounds, flux agents, fingerprints, soot wax and mold release agents, biological soil like blood, and so on
01: Application of indutrial ultrasonic cleaner
Ultrasonic cleaning can be used for many applications, including plastic parts, bearing, bolts, rubber parts, internal parts, plastic injection molds, transmission parts, and final cleaning of all engine parts prior to assembly, the versatility of ultrasonic cleaning machine make them the perfect choice for automotive, medical, pharmaceutical, aerospace, engineering and many other industries
Features:
- With digital control panel-high technology ,eay to handle ,
- With Motor Rotation system –tyre and rim cab be rotated when ultrasonic cleaning
- With pneumatic chuck –can be hang on different size of car tyre
- With pneumatic lift-tyre can automatically up and down in the tank
- With Drainage-easy for waste water flow away
- With casters-easy to move
Industrial Cleaning Machaine enough for most vertical blinds as well

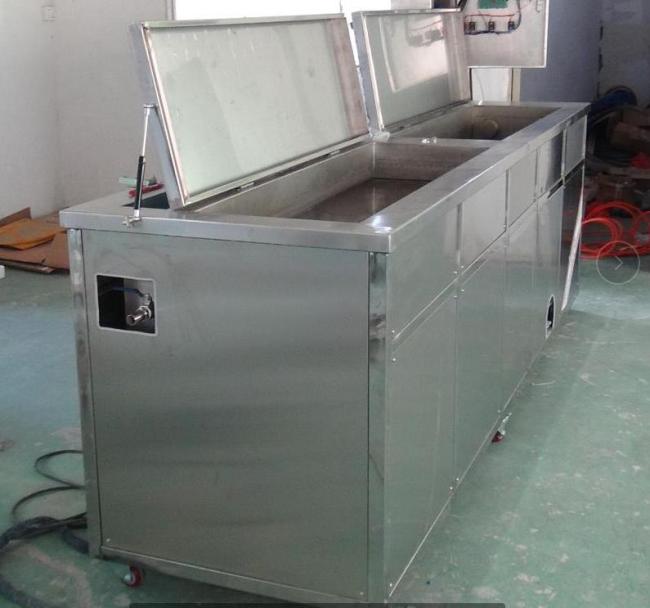

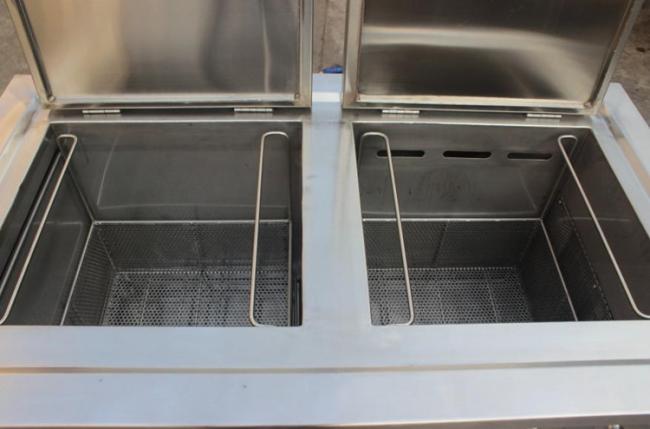

2 Separate Tanks - one for cleaning and one for rinsing
3 Drain Pipes - one for each tank
4.Industrial-Grade Transducers: very reliable, efficient, and powerful
5.Durable Stainless Steel Tank
6.Digital Timer for Controlling the Ultrasonic Power
7.Temperature-Controlled Heating
8.Sturdy Casters for Easy Transporting
9.1 Year Warranty
10. ultrasonic wave generator control
Competitive Advantage:
Tyre ultrasonic Cleaner With pneumatic lift ,tyre can automatically up and down ,capable to make tyre cleaning 360 circle
Indutrial Ultrasonic Cleaner Application:
Automotive, | To remove oil, grease, preservative, plastic residue left during mechanical cutting, grinding abrasive, glass fiber, dust, graphite and tar from Automotive air valve, glow plug, gasification plug, fuel pump, piston ring, battery terminal, machine control hand-wheel, motorcycleair-valve,etc. |
| Armurerie | weapons cleaning, such as guns, rifle, bullets , handcuffs, etc. |
How the Parts Washer works
Step 1: Cleaning:
The first stainless steel tank is used for ultrasonic cleaning, and includes the components required to remove contaminants from part surfaces. For the best results and for most applications, we recommend our patented multiple frequency ultrasonic system.
A high-efficiency heater is used to heat the ultrasonic cleaning tank which features a digital temperature controller so that bath temperature is continuously displayed.
Particles and contaminants are automatically removed by means of AGSONIC's particulate filtration system – thus helping to increase the longevity of the cleaning agent. Filters are conveniently housed for easy removal and servicing. Surface skimming options are also available to prevent re-deposition of contaminants back onto parts when removed from the tanks.
Finally, the ultrasonic cleaning cycle is switched off when complete by means of the digital ultrasonic timer which comes as a standard feature of both MTC-4 systems, or by the included optional Automation Systems.
Steps 2 and 3: Rinsing and/or rust prevention:
Most commonly, the second and third stainless steel tanks are used for primary and secondary submersion rinsing operations.
In this configuration, the system can provide zero-residue cleaning results when the second rinse tank is supplied with purified or deionized water. In rinse/rinse configurations, tanks are designed in Reverse Cascade Overflow Format which greatly reduces the consumption of water since both rinse tanks share the same water supply.
In clean/rinse/rust dip/dry systems the second tank can be manufactured for use as a dipping bath for immersing parts in rust preventative fluids to prevent corrosion of such parts.
Specification details:
Multi tank models for your choice:
| Model | T-3048G | T-3072G | T-3144G |
| Ultrasonic Tank Dimension(mm) | 550X400X350 | 600X500X450 | 1000X600X600 |
| Rinsing tank dimension(mm) | 550X400X350 | 600X500X450 | 1000X600X600 |
| Drying tank dimension(mm) | 550X400X350 | 600X500X450 | 1000X600X600 |
| Max. Capacity | 77L/tank | 135L/tank | 360L/tank |
| Construction Case | SUS304 (Mirror shining image available) | ||
| Construnction Tank | SUS304 | ||
| Transducer Number | 48pcs | 72pcs | 144pcs |
| Ultrasonic power(Max.) | 2400W | 3600W | 7200W |
| Ultrasonic frequency | 40kHz | 40kHz | 40kHz |
| Temperature range | 20~80C adjustable | ||
| Heating power | 6KW | 12KW | 24KW |
| Timer | 1~99h | 1~99h | 1~99h |
| Drain | 3/4" Valve | ||
| Lid & Basket | Available, material: SUS304 | ||
| Cleaning Tank voltage | AC220V/AC380V 3phase | ||
| Generator Voltage | AC110V / 220V 1phase | ||
| Features | With triple tanks for cleaning and rinsing. With filtration system Multi-direction castors with brake; 1 year warranty | ||
