ZJYS51 Type Common Mode Choke Coil For General Signal Line ZJYS Series
common mode choke coil For General Signal Line ZJYS Series ZJYS51 Type
Features of the ZJYS and ZJYS51 type, toroidal common mode choke
- A common mode filter for distortion-free noise removal from
transmitted signals. Optimized for transmission of high quality
signals. - Best filter for countering the common mode noise resulting from
data signal processing by PCs, phone equipment, etc. - SMD-type designed for surface mounting.
- Due to a maximum current tolerance of 5A, can also be used to
counter power line noise.
Applications of the ZJYS and ZJYS51 type, toroidal common mode choke
- Personal computers, telephones,
- LANs, ISDNs, digital PBXs,
- electronic games, CTVs, CD-ROM drives,
- 8mm video equipment,
- other electronic devices.
Characteristics and ordering codes
| Trader PN# | Our PN# | Rated Voltage Edc(V) | Rated Current | DCR (ohm) | Impedance (ohm) |
Insulation Resistance (MΩ) |
| ZJYS51R5-2P(T)-01 | SCMC5101 | 50 | 2 | 0.06 Max | 200 Min | 100 Min |
| ZJYS51R5-2PB(T)-01 | SCMC5102 | 50 | 2 | 0.06 max | 200 Min | 100 Min |
| ZJYS51R5-2PL(T)-01 | SCMC5103 | 50 | 2 | 0.06 max | 200 Min | 100 Min |
| ZJYS5103-2PL(T)-01 | SCMC5104 | 50 | 3 | 0.03 max | 100 Min | 100 Min |
| ZJYS51R5-M4PA(T)-01 | SCMC5105 | 50 | 0.5 | 0.2 max | 200 Min | 100 Min |
| ZJYS5105-2PL(T)-01 | SCMC5106 | 50 | 5 | 0.01 max | 100 Min |
100 Min
|
Shape and Dimensions:

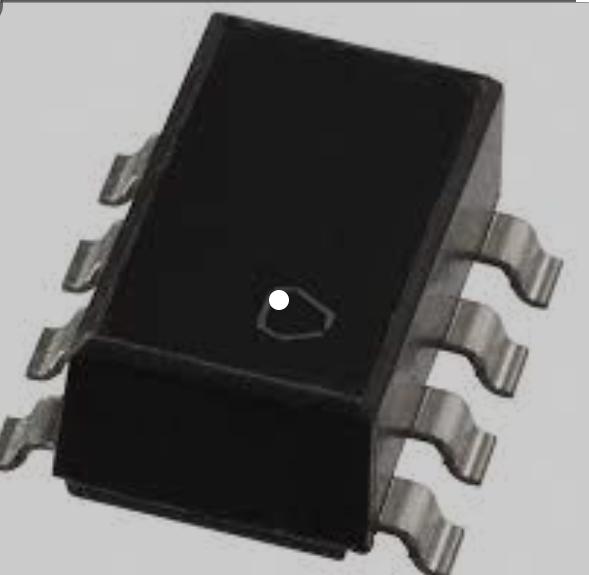

Product picture:
