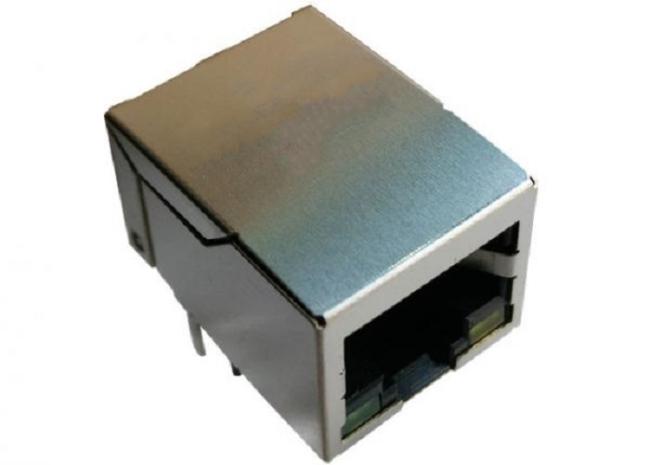

Single Port RJ45 Magnetic Jack HR911105A 10 / 100 / 1000Baase With Module / LED
HR911105A 10/100/1000Baase Single Port Magnetics RJ45 Jack with Module and LED
Product Details:
- Designed for Network Interface Card Application.
- Meets or Exceeds IEEE802.3 standards including 350uH Min OCL with 8mADC.
- High performance for EMI suppression, Crosstalk,Return Loss and Consistent Electrical.
- Minimum 1500Vrms isolation per IEEE802.3 requirement.
- Minimize PCB space and Simplify PCB Layout.
- Less magnetic components to place on PCB,Higher reliability and yields.
Electrical Specification @25℃
- Isolation: 1500Vrms (UTP Side to Chip Side)
- OCL: 350uH Minimum @100KHz 100mV with 8mADC.
- Insertion Loss: -1.0dB Maximum @300KHz-100MHz
- Return Loss: -20dB Maximum @1MHz-10MHz
-16dB Maximum @10MHz-30MHz
-12dB Maximum @30MHz-60MHz
-10dB Maximum @60MHz-80MHz
- Common Mode Rejection:-30dB Maximum @1MHz-50MHz
-20dB Maximum @50MHz-150MHz
- Crosstalk:-40dB Maximum @1MHz-30MHz
-35dB Maximum @30MHz-60MHz
-30dB Maximum @60MHz-100MHz

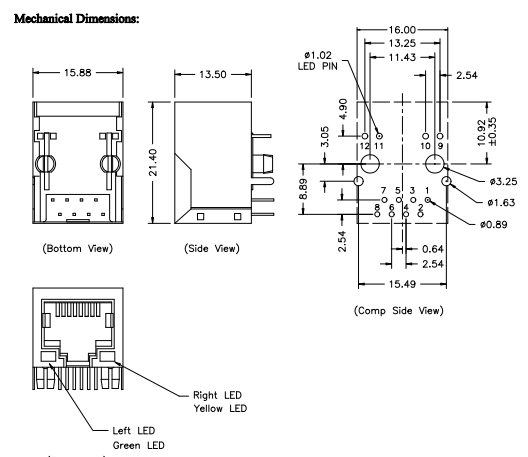

HR911105A 10/100/1000Baase Single Port Magnetics RJ45 Jack with Module and LED

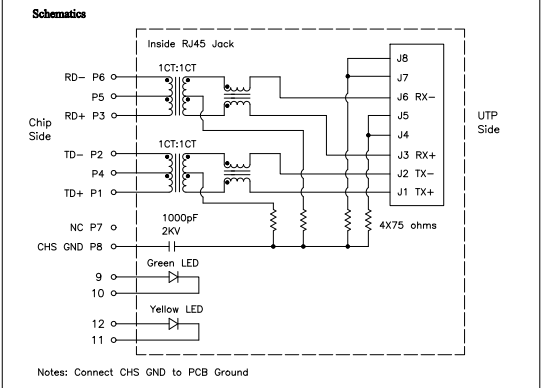

HR911105A 10/100/1000Baase Single Port Magnetics RJ45 Jack with Module and LED
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
