Ferrite Core SMD Power Inductor , BSCH00060303 Ceramic Multilayer Chip Inductor
BSCH00060303 SMD Power Inductor Ceramic Multilayer Chip Inductors
Product Description:
The BSCH Series is a type of ceramic chip inductor produced using
the multilayer technology. The series provides excellent Q factor and
SRF characteristics and is suitable for high frequency applications.
Features:
- RoHS compliant
- Excellent Q factor and SRF characteristics
- Small size of 1005/1608 is suitable for small portable devices
- Supports operating frequency up to 6GHz with nominal inductance values from 1.0nH to 470nH.
Applications:
- RF resonance and impedance matching circuit
- RF and wireless communication
- Information technology equipment, computers, telecommunications, radar detectors, automotive electronics,cellular phones, pagers, PDAs, keyless remote systems
- L-C filter configurations

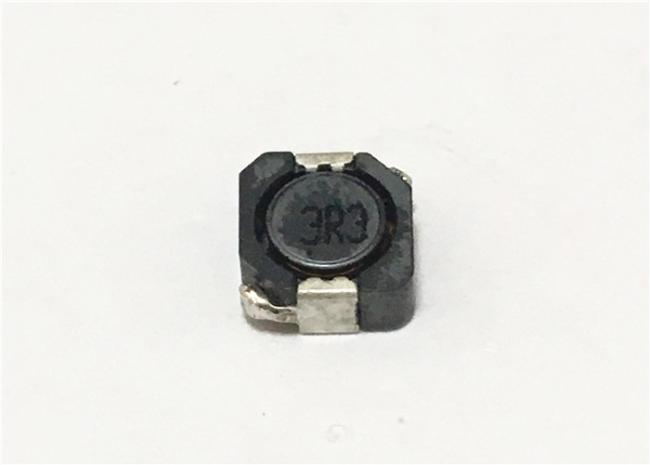

BSCH00060303 SMD Power Inductor Ceramic Multilayer Chip Inductors

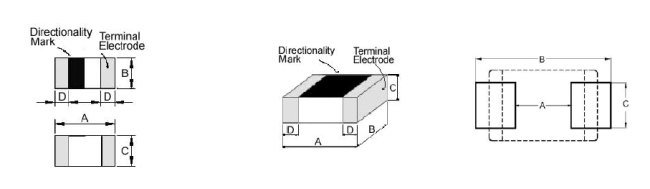

BSCH00060303 SMD Power Inductor Ceramic Multilayer Chip Inductors
BSCH Series Product:
100
| Electrical Characteristics | |||||||
| Part Number | Inductance (nH) |
Tolerance (±%) |
Test Frequency (MHz) |
Q Min |
SRF (MHz) Min |
RDC (Ω) Max |
Rated Current (mA) Max |
| BSCH000603031N0□00 | 1.0 | ±0.3nH | 100 | 4 | >10000 | 0.11 | 470 |
| BSCH000603031N2□00 | 1.2 | ±0.3nH | 100 | 4 | >10000 | 0.12 | 450 |
| BSCH000603031N5□00 | 1.5 | ±0.3nH | 100 | 4 | >10000 | 0.13 | 430 |
| BSCH000603031N8□00 | 1.8 | ±0.3nH | 100 | 4 | >10000 | 0.16 | 390 |
| BSCH000603032N0□00 | 2.0 | ±0.3nH | 100 | 4 | >10000 | 0.17 | 380 |
| BSCH000603032N2□00 | 2.2 | ±0.3nH | 100 | 4 | 8800 | 0.19 | 360 |
| BSCH000603032N4□00 | 2.4 | ±0.3nH | 100 | 4 | 8300 | 0.20 | 350 |
| BSCH000603032N7□00 | 2.7 | ±0.3nH | 100 | 4 | 7700 | 0.21 | 340 |
| BSCH000603033N0□00 | 3.0 | ±0.3nH | 100 | 4 | 7200 | 0.22 | 330 |
| BSCH000603033N0□00 | 3.3 | ±0.3nH | 100 | 4 | 6700 | 0.23 | 320 |
| BSCH000603033N6□00 | 3.6 | ±0.3nH | 100 | 4 | 6400 | 0.25 | 310 |
| BSCH000603033N9□00 | 3.9 | ±0.3nH | 100 | 4 | 6000 | 0.27 | 300 |
| BSCH000603034N3□00 | 4.3 | ±0.3nH | 100 | 4 | 5700 | 0.30 | 280 |
| BSCH000603034N7□00 | 4.7 | ±0.3nH | 100 | 4 | 5300 | 0.30 | 280 |
| BSCH000603035N1□00 | 5.1 | ±0.3nH | 100 | 4 | 5000 | 0.33 | 270 |
| BSCH000603035N6□00 | 5.6 | ±0.3nH | 100 | 4 | 4600 | 0.36 | 260 |
| BSCH000603036N2□00 | 6.2 | ±0.3nH | 100 | 4 | 4200 | 0.38 | 250 |
| BSCH000603036N8□00 | 6.8 | 5 | 100 | 4 | 3900 | 0.39 | 250 |
| BSCH000603037N5□00 | 7.5 | 5 | 100 | 4 | 3600 | 0.41 | 240 |
| BSCH000603038N2□00 | 8.2 | 5 | 100 | 4 | 3400 | 0.45 | 230 |
| BSCH000603039N1□00 | 9.1 | 5 | 100 | 4 | 3200 | 0.48 | 220 |
| BSCH0006030310N□00 | 10 | 5 | 100 | 4 | 2900 | 0.51 | 220 |
| BSCH0006030312N□00 | 12 | 5 | 100 | 4 | 2700 | 0.68 | 190 |
| BSCH0006030315N□00 | 15 | 5 | 100 | 4 | 2100 | 0.71 | 180 |
| BSCH0006030318N□00 | 18 | 5 | 100 | 4 | 1800 | 0.81 | 170 |
| BSCH0006030322N□00 | 22 | 5 | 100 | 4 | 1800 | 1.00 | 150 |
| BSCH0006030327N□00 | 27 | 5 | 100 | 4 | 1700 | 1.35 | 120 |
| BSCH0006030333N□00 | 33 | 5 | 100 | 4 | 1500 | 1.47 | 110 |
| BSCH0006030339N□00 | 39 | 5 | 100 | 4 | 1300 | 1.72 | 100 |
| BSCH0006030347N□00 | 47 | 5 | 100 | 4 | 1100 | 1.90 | 100 |
| BSCH0006030356N□00 | 56 | 5 | 100 | 4 | 1100 | 2.27 | 80 |
| BSCH0006030368N□00 | 68 | 5 | 100 | 4 | 1000 | 2.66 | 80 |
| BSCH0006030382N□00 | 82 | 5 | 100 | 4 | 1000 | 3.37 | 70 |
| BSCH00060303R10□00 | 100 | 5 | 100 | 4 | 900 | 3.74 | 60 |
BSCH00060303 SMD Power Inductor Ceramic Multilayer Chip Inductors
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
