Half Inch - Pitch SMD Power Choke SMTB656030T-900-N 8 Pin Shielded For Camera

SMTB656030T-900-N 8-pin half inch-pitch SMD Common Mode Choke

product description:

SMTB Series is a dual wound common mode choke ideal for common mode noise attenuation in twisted pair cable interfaces as well as IEEE 1394 applications. An excellent impedance balance between two sets of twisted pairs is achieved by winding across a signal core. One SBCB common mode choke coil per interface port is possible with this dual winding configuration.

Features:

1. RoHS Compliant
2. Dual Common-mode choke coils
3. 8-pin, half inch-pitch SMD type

Applications:

1. Preventive measure against USB & IEEE1394 radiation emissions

2. Suppresses radiated emissions from peripheral devices

3. Personal computer (Desk-top, Note-book) game computer, Digital Camera, etc.

4. Use of high performance ferrite for excellent high frequency characteristics

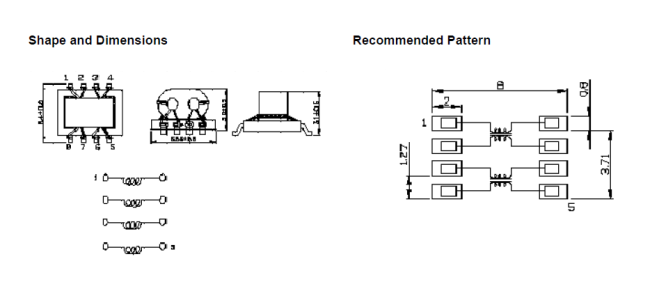

Shape and Dimensions:

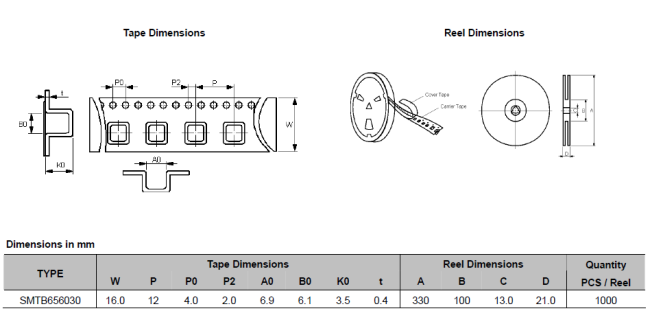

Packaging Specifications:

SMTB656030T-900-N 8-pin half inch-pitch SMD Common Mode Choke

Electrical Characteristics:

SMTB656030T-900-N 8-pin half inch-pitch SMD Common Mode Choke

HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
