PA3855.006NL Small Signal Transformer SMT Copper Wire Wound With 8 Pins
PA3855.006NL SMT Copper Wire Wound Small Signal Transformer
Feature:
- Industry standard footprint, 30% more power handling
- Power Range: Up to 70W
- Height: 14.0mm Max
- Footprint: 17.7mm x 14.5mm Max
- Topology: Forward and Flyback
| Electrical Specifications @ 25°C - Operating Temperature -40°C to +130°C | |||
| Product name | Pri. Inductance | (1-3) | 21uH +/- 10% |
| PA3855.005NL | Lk. Inductance | (1-3) w/ (10,9,6,7,4,5) shorted |
0.3uH Max |
| DCR | (1-3) | 31 mΩ Max | |
| (9-6) | 14 mΩ Max | ||
| (10-7) | 14 mΩ Max | ||
| (4-5) | 180 mΩ Max | ||
| Hi-Pot | Pri-Sec | 2250 Vdc | |
| K1 Factor | 583.3 | ||
| PA3855.006NL | Pri. Inductance | (1-3) | 21uH +/- 10% |
| Lk. Inductance | (1-3) w/ (10,9,6,7,4,5) shorted |
0.3uH Max | |
| DCR | (1-3) | 31 mΩ MAX | |
| (9-6) | 58 mΩ MAX | ||
| (10-7) | 58 mΩ MAX | ||
| (4-5) | 180 mΩ MAX | ||
| Hi-Pot | Pri-Sec | 2250 Vdc | |
| K1 Factor | 583.3 | ||
| PA3856.002NL | Pri. Inductance | (3-4) | 100uH +/- 15% |
| Lk. Inductance | (1-3) w/ (10,9,6,7,4,5) shorted |
0.4uH Max | |
| DCR | (1-3) | 29.4 mΩ MAX | |
| (9-6) | 10 mΩ MAX | ||
| (10-7) | 10 mΩ MAX | ||
| (4-5) | 120 mΩ MAX | ||
| Hi-Pot | Pri-Sec | 2250 Vdc | |
| K1 Factor | 27.8 | ||
| PA3856.003NL | Pri. Inductance | (1-3) | 100uH +/- 10% |
| Lk. Inductance | (1-3) w/ (10,9,6,7,4,5) shorted |
0.4uH Max | |
| DCR | (1-3) | 29.4 mΩ MAX | |
| (9-6) | 31.6 mΩ MAX | ||
| (10-7) | 36 mΩ MAX | ||
| (4-5) | 120 mΩ MAX | ||
| Hi-Pot | Pri-Sec | 2250 Vdc | |
| K1 Factor | 27.8 | ||
PA3855.006NL SMT Copper Wire Wound Small Signal Transformer
Shape and Dimensions:

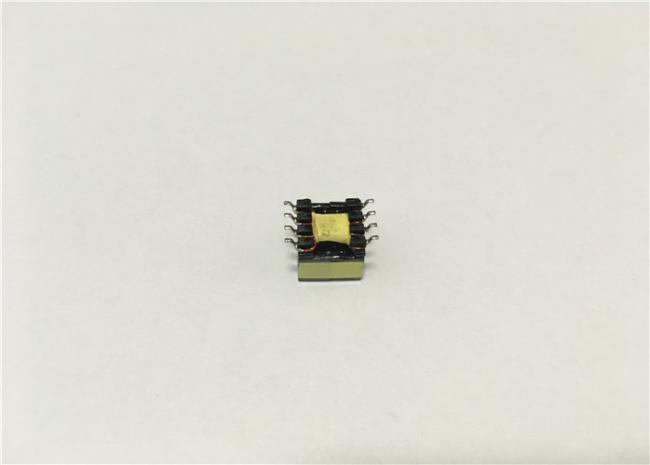

Product Picture:
PA3855.006NL SMT Copper Wire Wound Small Signal Transformer
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
