33471C Toroidal Power Inductor Air Core Choke Copper Wire Magnetic Ring
33471C Toroidal Coil Common Mode Choke Toroidal Power Inductors
Description:
The 3300 series is a range of through-hole power inductors. Due to the toroidal construction, they
exhibit a very low EMI as stray fl ux is kept to a minimum. Typical applications include switching
regulators, and power line fi ltering.
Feature:
- RoHS compliant
- Toroidal construction
- Up to 7.6A IDC
- Inductance range from 10μH to 1.0mH
- Low EMI
- UL 94V-0 packaging materials
- Low DC resistance
| Part number | Inductance, L | DC Current2 | DC Resistance | Q @ f MHz | SRF | Package Weight |
|
| ±15% | Max. | Max. | Nom. | Typ. | Typ. | ||
| μH | A | mΩ | Q | f | MHz | g | |
| 33100C | 10 | 7.60 | 20 | 3.4 | 1.0 | 68 | 20.8 |
| 33150C | 15 | 6.20 | 27 | 3.3 | 1.0 | 49 | 21.3 |
| 33220C | 22 | 5.10 | 33 | 3.4 | 1.0 | 37 | 21.5 |
| 33330C | 33 | 4.20 | 40 | 3.5 | 1.0 | 24 | 22.0 |
| 33470C | 47 | 3.50 | 48 | 3.4 | 1.0 | 17 | 22.5 |
| 33680C | 68 | 2.90 | 57 | 3.5 | 1.0 | 16 | 22.9 |
| 33101C | 100 | 2.40 | 70 | 3.9 | 0.8 | 9.7 | 23.7 |
| 33151C | 150 | 2.00 | 84 | 3.8 | 0.8 | 7.2 | 24.9 |
| 33221C | 220 | 1.60 | 102 | 3.2 | 0.8 | 2.0 | 26.1 |
| 33331C | 330 | 1.30 | 126 | 3.4 | 0.8 | 1.9 | 27.8 |
| 33471C | 470 | 1.10 | 152 | 2.6 | 0.8 | 1.4 | 29.5 |
| 33681C | 680 | 0.92 | 183 | 0.64 | 0.8 | 0.9 | 31.5 |
| 33102C | 1000 | 0.76 | 221 | 0.85 | 0.8 | 0.7 | 34.0 |
33471C Toroidal Coil Common Mode Choke Toroidal Power Inductors Shape and
Dimensions:

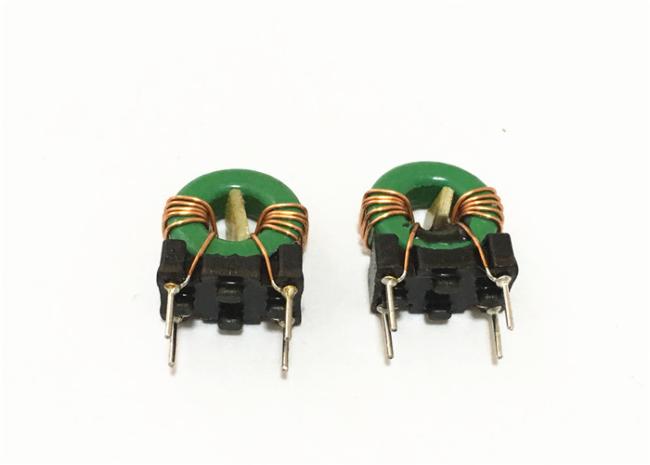

Product Picture:
33471C Toroidal Coil Common Mode Choke Toroidal Power Inductors
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
