Ferrite Core 6.48mm*4.45mm*7.2mm Bias Injection Choke KA4909-AL_

Product Description:

Developed for use with Texas Instruments DS90UB901Q serializer
and DS90UB902Q deserializer for Low-Voltage Differential
Signaling (LVDS) applications.
This center tapped inductor provides over 1 kOhm impedance
from 1 MHz – 800 MHz.
Can be used with additional 10 μH and 1 μH inductors to achieve
even wider band differential signal rejection.
AEC-Q200 Grade 3 (–40°C to +85°C) qualified

Feature:

Core material Ferrite
Terminations RoHS compliant tin-silver-copper over tin over nickel
over phos bronze.
Weight 220 mg
Ambient temperature –40°C to +105°C
Storage temperature Component: –40°C to +105°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)

Ferrite Core 6.48mm*4.45mm*7.2mm Bias Injection Choke KA4909-AL_

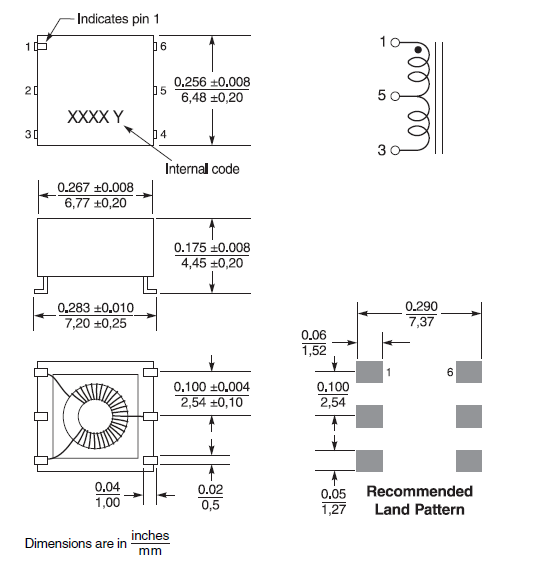

Shape and Dimensions:

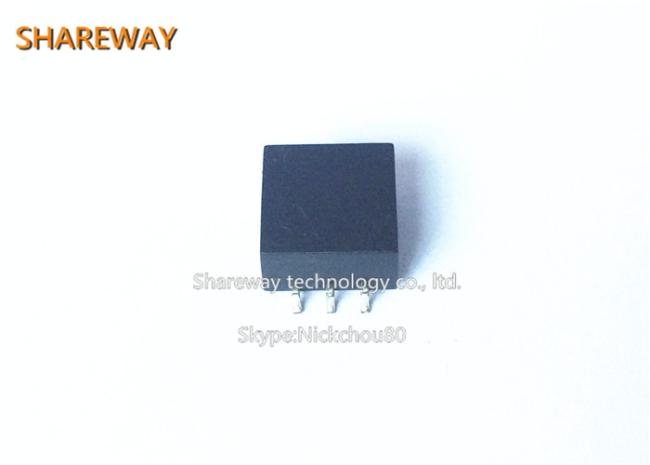

Product picture:
