350 μH up to 20 mA at +85°C ambient FA2536-AL_ Mid-Span PoE Plus Magnetics

Price Negotiable
Price: Supportive
MOQ: 100/500/1000
Delivery Time: Stock or 3 weeks
Brand: Shareway
Product Description

350 μH up to 20 mA at +85°C ambient FA2536-AL_ Mid-Span PoE Plus Magnetics


Feature:

This device contains two injector coils designed for 30 Watt
PoE applications. Return loss exceeds the requirements
of 802.3af specification for the entire frequency range. It
maintains OCL of 350 μH up to 20 mA at +85°C ambient.





Part

number

Inductance

min

(μH)

Leakage

inductance

max (μH)

DCR

(Ohms)

FA2536-AL_ 675.0 0.55 0.240





350 μH up to 20 mA at +85°C ambient FA2536-AL_ Mid-Span PoE Plus Magnetics

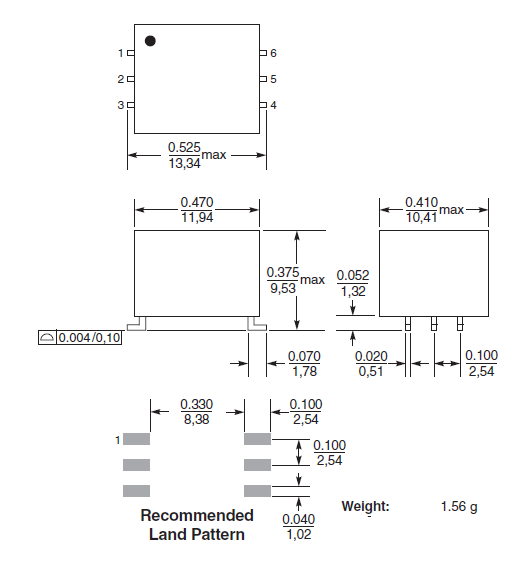

Shape and Dimensions:

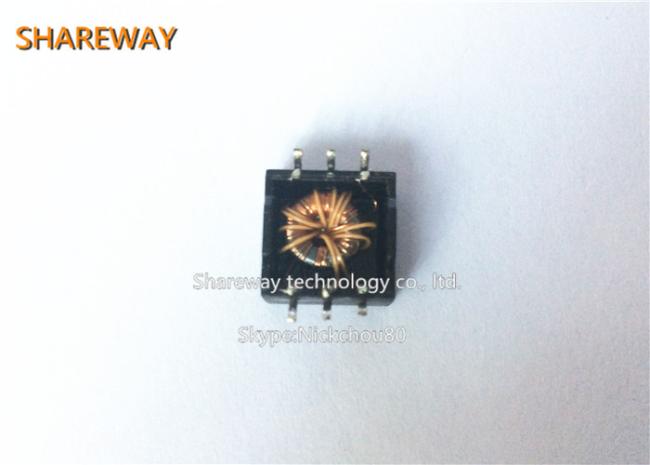

Product picture:
