Ferrite Core 5.97 G Weight DA2383-AL_ Fit PoE Application With RoHS
Ferrite Core 5.97 g Weight DA2383-AL_ For PoE application with RoHS
Description:
• Designed to operate in continuous mode at 250 kHz
• TI App Note AN‑1430 specifies 84% efficiency at 3 A.
• 1500 Vrms, one minute isolation from primary and aux to secondary
• Flyback Transformer For Texas Instruments LM5071 PoE PD Controller
Core material Ferrite
Terminations RoHS tin-silver over tin over nickel over phos bronze.
Other terminations available at additional cost.
Weight 5.97 g
Ambient temperature –40°C to +85°C
Storage temperature Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
|
Part number |
L at 0 A ±10% (μH) min |
L at Ipk min (μH) |
Input voltage (V) |
DCR max (Ohms) |
Leakage L max (μH) |
Turns ratios |
Ipk (A) |
Outputs |
| DA2383-AL | 127.0 | 114.3 | 24 –60 |
0.310 (aux) 0.012 (sec) 0.255 (pri) |
1.25 |
2 : 1 (pri : aux) 6 : 1 (pri : sec ) |
1.0 |
10 V, 0.05 A (aux) 3.3 V, 4.0 A (sec) |
Ferrite Core 5.97 g Weight DA2383-AL_ For PoE application with RoHS

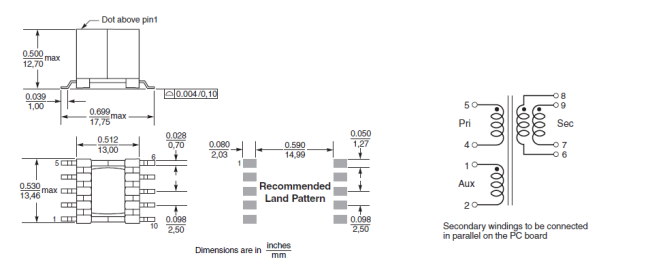

Shape and Dimensions:

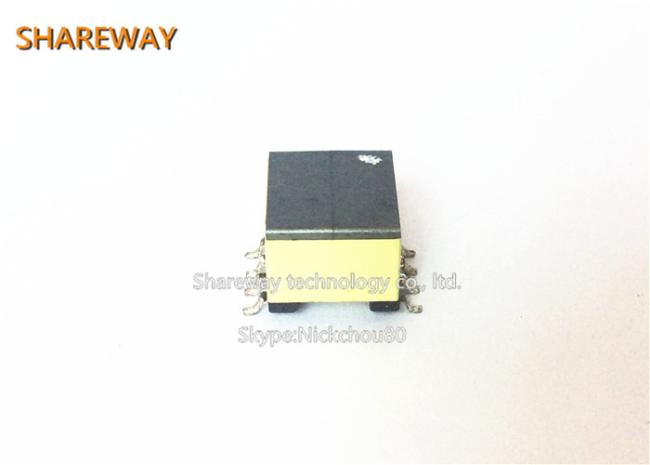

Product picture:
