20 uH 32*32*15mm SMD Power Inductor ED0006-AL toroidal choke Power Filter Inductor
20 uH 32*32*15mm ED0006-AL toroidal choke Power Filter Inductor
Description:
This toroidal choke was developed for Zetex Semiconductors
ZXCD1210 High performance analog input Class D
modulator. This application provides up to 500 Wrms into
4 Ohms. The ED0006-AL is the low pass filter for the high
frequency switching PWM signal, enabling recovery of the
lower frequency audio signal.
|
Part number |
Inductance ±20% (μH) |
DCR max (mOhms) |
SRF min (MHz) |
Isat (A) |
Irms (A) | |
|
20°C rise |
40°C rise |
|||||
| ED0006-AL | 20 | 42 | 13 | 36.0 | 5.1 | 7.2 |
1. Inductance measured at 100 kHz, 100 mVrms, 0 Adc using an Agilent/
HP 4132 impedance analyzer or equivalent.
2. DCR measured on a Valhalla 4105 ATC digital ohmmeter or equivalent.
3. DC current at which the inductance drops 10% (typ) from its value without
current.
4. Current that causes the specified temperature rise from 25°C ambient.
5. Ambient temperature range: –40°C to +125°C with Irms current
+125°C to +165°C with derated current
6. Storage temperature range: Component: –40°C to +165°C
Packaging: –40°C to +80°C.
7. Electrical specifications at 25°C.
20 uH 32*32*15mm ED0006-AL toroidal choke Power Filter Inductor

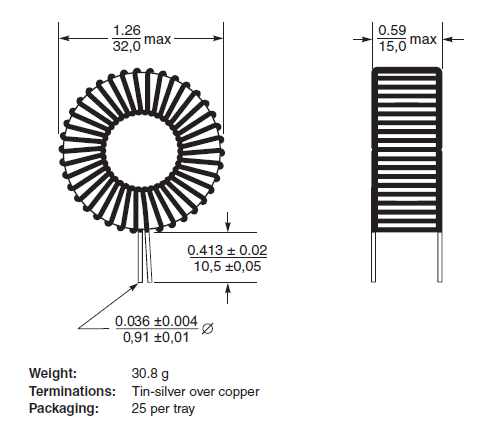

Shape and Dimensions:
