Powdered iron halogen free SMD Power Inductor PA6331-AE / MA5172-AE Power Filter Inductors
Powdered iron halogen free PA6331-AE / MA5172-AE Power Filter Inductors
Description:
Core material Powdered iron
Environmental RoHS compliant, halogen free
Terminations RoHS compliant tin-silver (96.5/3.5) over copper
Weight MA5172-AE: 18.7 g; MA5173-AE: 17.6 g; PA6331-AE: 21.2 g
Ambient temperature –40°C to +125°C with (40°C rise) Irms current.
Maximum part temperature +165°C (ambient + temp rise).
Storage temperature Component: –40°C to +165°C.
Tray packaging: –40°C to +80°C
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging 25 per tray
|
Part number |
Inductance ±20% (μH) |
DCR max (mOhms) |
SRF min (MHz) |
Isat (A) |
Irms (A) | |
|
20°C rise |
40°C rise |
|||||
| PA6331-AE | 15 | 31.0 | 12.4 | 20 | 9.8 | 14.2 |
| MA5172-AE | 10 | 26.0 | 25.5 | 45 | 6.1 | 8.2 |
| MA5173-AE | 7 | 21.5 | 32.8 | 54 | 6.5 | 9.0 |
1. Inductance measured at 10 kHz, 0.1 Vrms, 0 Adc using an Agilent/
HP 4132 impedance analyzer or equivalent.
2. DC current at 25°C that causes an inductance drop of 10% (typ) from
its value without current.
3. Current that causes the specified temperature rise from 25°C ambient.
4. Electrical specifications at 25°C.
Powdered iron halogen free PA6331-AE / MA5172-AE Power Filter Inductors

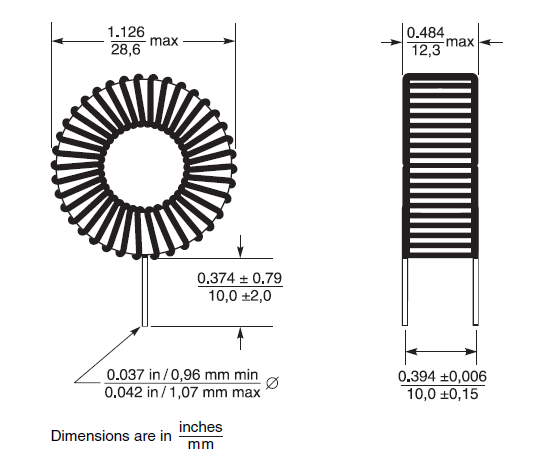

Shape and Dimensions:
