Low DCR MSS1583-103ME_ 14.8*14.8*8.6 mm Shielded Power Inductors
Low DCR MSS1583-103ME_ 14.8*14.8*8.6 mm Shielded Power Inductors
Description:
• 14.8 × 14.8 mm footprint; 8.6 mm high shielded inductors
• 16 inductance values from 10 μH to 1 mH
• Low DCR and excellent current handling
Core material Ferrite
Environment RoHS compliant, halogen free
Terminations RoHS compliant matte tin over nickel over phos bronze.
Other terminations available at additional cost.
Weight: 3.7 – 4.4 g
Ambient temperature –40°C to +85°C with (40°C rise) Irms current.
Maximum part temperature +125°C (ambient + temp rise). Derating.
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) /
| Part number |
Inductance (μH) |
DCR (mOhms) |
SRF typ (MHz) |
Isat (A) | Irms (A)6 | ||||
| typ | max |
10% drop |
20% drop |
30% drop |
20°C rise |
40°C rise |
|||
| MSS1583-103ME_ | 10 ±20% | 0.012 | 0.014 | 17.0 | 12.0 | 13.6 | 14.7 | 5.0 | 7.4 |
| MSS1583-123ME_ | 12 ±20% | 0.014 | 0.017 | 14.5 | 11.7 | 13.3 | 14.2 | 4.4 | 6.3 |
| MSS1583-153ME_ | 15 ±20% | 0.018 | 0.021 | 13.5 | 10.1 | 11.5 | 12.4 | 4.3 | 6.1 |
| MSS1583-183ME_ | 18 ±20% | 0.020 | 0.023 | 12.0 | 9.2 | 10.5 | 11.2 | 3.9 | 5.5 |
| MSS1583-223ME_ | 22 ±20% | 0.023 | 0.026 | 10.5 | 8.2 | 9.1 | 10.4 | 3.7 | 5.3 |
| MSS1583-333ME_ | 33 ±20% | 0.033 | 0.038 | 8.5 | 7.0 | 7.9 | 8.6 | 3.4 | 4.8 |
| MSS1583-473ME_ | 47 ±20% | 0.048 | 0.055 | 7.3 | 5.9 | 6.7 | 7.3 | 2.7 | 3.7 |
| MSS1583-683ME_ | 68 ±20% | 0.061 | 0.070 | 6.0 | 4.7 | 5.5 | 6.0 | 2.5 | 3.4 |
| MSS1583-104KE_ | 100 ±10% | 0.090 | 0.103 | 4.8 | 3.9 | 4.4 | 4.8 | 1.55 | 2.8 |
| MSS1583-154KE_ | 150 ±10% | 0.138 | 0.159 | 3.7 | 3.1 | 3.6 | 3.9 | 1.55 | 2.20 |
| MSS1583-224KE_ | 220 ±10% | 0.205 | 0.235 | 3.0 | 2.6 | 3.0 | 3.3 | 1.30 | 1.80 |
| MSS1583-334KE_ | 330 ±10% | 0.300 | 0.345 | 2.7 | 2.0 | 2.3 | 2.5 | 1.00 | 1.45 |
| MSS1583-474KE_ | 470 ±10% | 0.386 | 0.445 | 2.2 | 1.8 | 2.0 | 2.2 | 0.96 | 1.35 |
| MSS1583-684KE_ | 680 ±10% | 0.570 | 0.655 | 1.8 | 1.4 | 1.6 | 1.8 | 0.78 | 1.10 |
| MSS1583-824KE_ | 820 ±10% | 0.640 | 0.736 | 1.6 | 1.3 | 1.5 | 1.6 | 0.74 | 1.0 |
| MSS1583-105KE_ | 1000 ±10% | 0.860 | 0.990 | 1.5 | 1.1 | 1.3 | 1.4 | 0.63 | 0.86 |
Low DCR MSS1583-103ME_ 14.8*14.8*8.6 mm Shielded Power Inductors

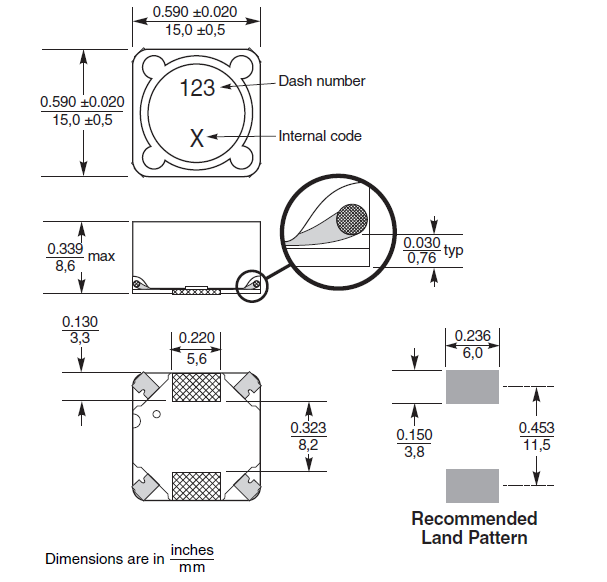

Shape and Dimensions:
