Description:
• 5.1 × 5.1 mm footprint; 3.1mm high shielded inductors
• Low DCR and excellent current handling
Core material Ferrite
Terminations RoHS compliant matte tin over nickel over phos
bronze (current production) or gold over nickel over phos bronze (prior
production). Other terminations available at additional cost.
Weight 0.20 – 0.24 g
Ambient temperature –40°C to +85°C with (40°C rise) Irms current.
Maximum part temperature +125°C (ambient + temp rise). Derating.
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
| Part number |
Inductance ±20% (μH) |
DCR max (Ohms) |
SRF typ (MHz) |
Isat (A) | Irms (A)6 | |||
|
10% drop |
20% drop |
30% drop |
20°C rise |
40°C rise |
||||
| MSS5131-222ML_ | 2.2 | 0.020 | 65.0 | 1.76 | 2.08 | 2.30 | 2.00 | 3.30 |
| MSS5131-332ML_ | 3.3 | 0.028 | 60.0 | 1.33 | 1.58 | 1.73 | 1.60 | 2.90 |
| MSS5131-472ML_ | 4.7 | 0.038 | 48.0 | 1.08 | 1.32 | 1.42 | 1.40 | 2.50 |
| MSS5131-562ML_ | 5.6 | 0.042 | 44.0 | 1.00 | 1.20 | 1.30 | 1.30 | 2.30 |
| MSS5131-682ML_ | 6.8 | 0.050 | 42.0 | 0.98 | 1.14 | 1.24 | 1.20 | 2.16 |
| MSS5131-822ML_ | 8.2 | 0.058 | 40.0 | 0.90 | 1.04 | 1.18 | 1.10 | 2.00 |
| MSS5131-103ML_ | 10 | 0.070 | 38.0 | 0.85 | 0.98 | 1.13 | 1.00 | 1.90 |
| MSS5131-123ML_ | 12 | 0.080 | 35.0 | 0.72 | 0.85 | 0.94 | 0.97 | 1.60 |
| MSS5131-153ML_ | 15 | 0.100 | 32.0 | 0.67 | 0.78 | 0.86 | 0.94 | 1.50 |
| MSS5131-183ML_ | 18 | 0.120 | 26.0 | 0.61 | 0.72 | 0.79 | 0.89 | 1.40 |
| MSS5131-223ML_ | 22 | 0.145 | 22.0 | 0.54 | 0.64 | 0.70 | 0.87 | 1.30 |
| MSS5131-273ML_ | 27 | 0.161 | 19.0 | 0.48 | 0.56 | 0.62 | 0.85 | 1.20 |
| MSS5131-333ML_ | 33 | 0.200 | 18.0 | 0.44 | 0.52 | 0.58 | 0.80 | 1.10 |
| MSS5131-393ML_ | 39 | 0.215 | 17.0 | 0.42 | 0.50 | 0.55 | 0.74 | 1.00 |
| MSS5131-473ML_ | 47 | 0.270 | 16.0 | 0.38 | 0.46 | 0.51 | 0.71 | 0.95 |
| MSS5131-563ML_ | 56 | 0.280 | 15.0 | 0.34 | 0.42 | 0.47 | 0.70 | 0.90 |
| MSS5131-683ML_ | 68 | 0.368 | 12.5 | 0.31 | 0.38 | 0.42 | 0.66 | 0.85 |
| MSS5131-823ML_ | 82 | 0.420 | 12.0 | 0.27 | 0.32 | 0.35 | 0.62 | 0.80 |
| MSS5131-104ML_ | 100 | 0.580 | 11.5 | 0.26 | 0.30 | 0.33 | 0.55 | 0.69 |
| MSS5131-124ML_ | 120 | 0.610 | 11.0 | 0.23 | 0.27 | 0.30 | 0.51 | 0.62 |
| MSS5131-154ML_ | 150 | 0.820 | 10.0 | 0.21 | 0.26 | 0.28 | 0.47 | 0.58 |
| MSS5131-184ML_ | 180 | 1.00 | 9.0 | 0.19 | 0.23 | 0.25 | 0.43 | 0.54 |
| MSS5131-224ML_ | 220 | 1.10 | 8.0 | 0.18 | 0.21 | 0.23 | 0.39 | 0.50 |
| MSS5131-274ML_ | 270 | 1.43 | 7.5 | 0.15 | 0.18 | 0.20 | 0.35 | 0.45 |
| MSS5131-334ML_ | 330 | 1.58 | 6.8 | 0.13 | 0.17 | 0.19 | 0.32 | 0.42 |
| MSS5131-394ML_ | 390 | 1.80 | 5.4 | 0.12 | 0.15 | 0.16 | 0.30 | 0.38 |
matte tin over nickel over phos bronze SMD inductor MSS5131-222ML_

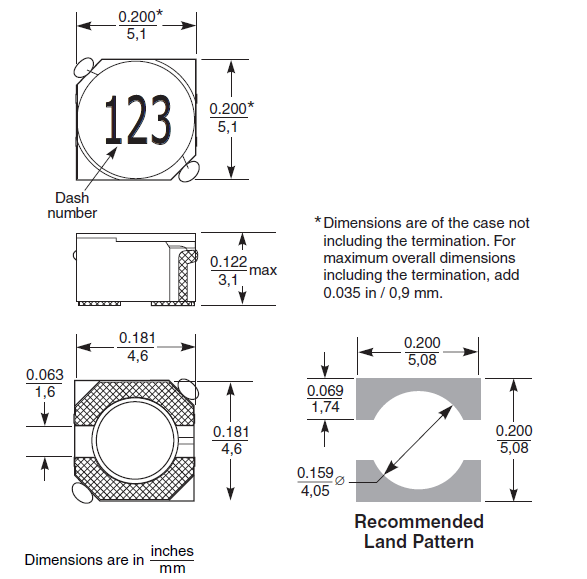

Shape and Dimensions:
