SER1360-331KL_ SMD Power Inductor with magnetic shielding and 13 × 13 mm base
Price:
Supportive
MOQ:
100/500/1000
Delivery Time:
Stock or 3 weeks
Brand:
Shareway
Product Description
SER1360-331KL_ Power Inductors with magnetic shielding and 13 × 13 mm base
Description:
The SER1360 series provides exceptionally high current carrying
capability (up to 43 Amps) and very low DC resistance,
all in a low profile, small footprint package.
The part’s magnetic shielding and 13 × 13 mm base allow
high density mounting while the flat wire winding keeps
the overall height to just 6 mm.
In addition to the standard values show, custom values
are available to meet specific applications.
| Part number |
Inductance ±10% (μH) |
DCR (mOhms) |
SRF typ (MHz) |
Isat (A) | Irms (A) | ||||
| typ | max | 10% drop | 20% drop | 30% drop | 20°C rise | 40°C rise | |||
| SER1360-331KL_ | 0.33 | 0.77 | 0.85 | 200 | 36 | 41 | 43 | 13.0 | 16.9 |
| SER1360-651KL_ | 0.65 | 0.77 | 0.85 | 160 | 23 | 27 | 28 | 13.0 | 16.9 |
| SER1360-102KL_ | 1.0 | 2.36 | 2.60 | 75 | 32 | 33 | 33.5 | 9.5 | 13.0 |
| SER1360-182KL_ | 1.8 | 2.36 | 2.60 | 50 | 17 | 19 | 20 | 9.5 | 13.0 |
| SER1360-272KL_ | 2.7 | 2.36 | 2.60 | 42 | 12 | 13 | 14 | 9.5 | 13.0 |
| SER1360-402KL_ | 4.0 | 5.50 | 6.05 | 34 | 11 | 12 | 13 | 7.1 | 9.4 |
| SER1360-472KL_ | 4.7 | 5.50 | 6.05 | 32 | 9.5 | 11 | 12 | 7.1 | 9.4 |
| SER1360-602KL_ | 6.0 | 5.50 | 6.05 | 28 | 8.0 | 9.0 | 9.5 | 7.1 | 9.4 |
| SER1360-802KL_ | 8.0 | 9.83 | 10.81 | 26 | 7.5 | 8.8 | 9.0 | 5.5 | 7.6 |
| SER1360-103KL_ | 10 | 9.83 | 10.81 | 24 | 6.2 | 7.5 | 7.5 | 4.4 | 7.2 |

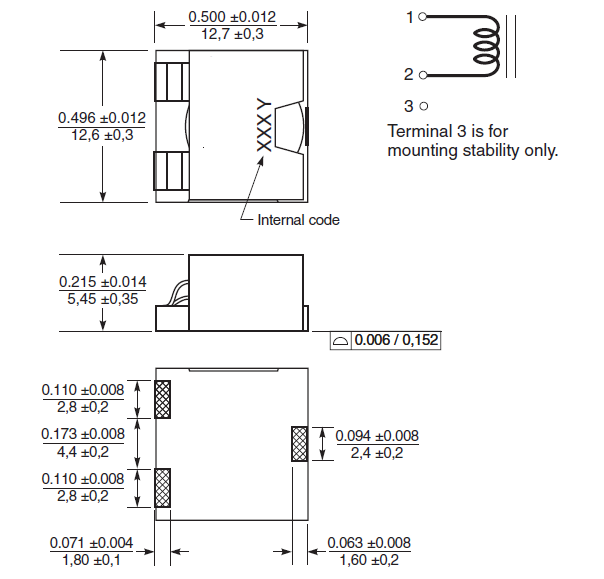

SER1360-331KL_ Power Inductors with magnetic shielding and 13 × 13 mm base
