6.6 × 6.6 mm footprint Shielded Power Inductors MSS7341-332_L_
6.6 × 6.6 mm footprint Shielded Power Inductors MSS7341-332_L_
Description:
• 6.6 × 6.6 mm footprint; 4.1 mm high shielded inductors
• Low DCR and excellent current handling
Core material Ferrite
Terminations RoHS compliant matte tin over nickel over phos
bronze (current production) or gold over nickel over phos bronze (prior
production). Other terminations available at additional cost.
Weight: 0.61 – 0.67 g
Ambient temperature –40°C to +85°C with (40°C rise) Irms current.
Maximum part temperature +125°C (ambient + temp rise). Derating.
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging 300/7 reel; 1200/13″ reel; Plastic tape: 16 mm wide,
0.35 mm thick, 12 mm pocket spacing, 4.5 mm pocket depth
| Part number |
Inductance (μH) |
Percent tolerance |
DCR (mOhms) |
SRF typ (MHz) |
Isat (A) | Irms (A)6 | ||||
| typ | max |
10% drop |
20% drop |
30% drop |
20°C rise |
40°C rise |
||||
| MSS7341-332_L_ | 3.3 | 30,20 | 0.014 | 0.018 | 85 | 2.74 | 3.28 | 3.72 | 3.95 | 5.00 |
| MSS7341-502_L_ | 5.0 | 30,20 | 0.018 | 0.023 | 49 | 2.30 | 2.82 | 3.16 | 3.40 | 4.70 |
| MSS7341-622_L_ | 6.2 | 30,20 | 0.024 | 0.027 | 42 | 2.18 | 2.66 | 2.98 | 3.05 | 4.30 |
| MSS7341-742_L_ | 7.4 | 30,20 | 0.027 | 0.031 | 35 | 1.92 | 2.32 | 2.56 | 2.80 | 4.10 |
| MSS7341-872_L_ | 8.7 | 30,20 | 0.029 | 0.034 | 33 | 1.78 | 2.12 | 2.36 | 2.80 | 3.90 |
| MSS7341-103ML_ | 10 | 20 | 0.032 | 0.038 | 32 | 1.64 | 1.92 | 2.10 | 2.80 | 3.80 |
| MSS7341-123ML_ | 12 | 20 | 0.040 | 0.050 | 27 | 1.48 | 1.76 | 1.92 | 2.45 | 3.30 |
| MSS7341-153ML_ | 15 | 20 | 0.047 | 0.055 | 26 | 1.36 | 1.60 | 1.78 | 2.05 | 3.00 |
| MSS7341-183ML_ | 18 | 20 | 0.065 | 0.075 | 25 | 1.20 | 1.46 | 1.62 | 1.85 | 2.65 |
| MSS7341-223ML_ | 22 | 20 | 0.074 | 0.082 | 22 | 1.02 | 1.26 | 1.42 | 1.70 | 2.35 |
| MSS7341-273ML_ | 27 | 20 | 0.091 | 0.109 | 19 | 1.00 | 1.14 | 1.22 | 1.50 | 2.10 |
| MSS7341-333ML_ | 33 | 20 | 0.104 | 0.124 | 17 | 0.91 | 1.04 | 1.16 | 1.50 | 1.95 |
| MSS7341-393ML_ | 39 | 20 | 0.115 | 0.130 | 15 | 0.85 | 1.01 | 1.12 | 1.50 | 1.90 |
| MSS7341-473ML_ | 47 | 20 | 0.127 | 0.155 | 14 | 0.74 | 0.92 | 1.00 | 1.50 | 1.85 |
| MSS7341-563ML_ | 56 | 20 | 0.174 | 0.202 | 11 | 0.68 | 0.80 | 0.87 | 1.25 | 1.60 |
| MSS7341-683ML_ | 68 | 20 | 0.236 | 0.250 | 9.6 | 0.62 | 0.73 | 0.80 | 1.00 | 1.35 |
| MSS7341-823ML_ | 82 | 20 | 0.257 | 0.290 | 8.5 | 0.57 | 0.66 | 0.72 | 1.00 | 1.25 |
| MSS7341-104ML_ | 100 | 20 | 0.286 | 0.310 | 7.2 | 0.54 | 0.64 | 0.71 | 0.90 | 1.15 |
| MSS7341-154ML_ | 150 | 20 | 0.438 | 0.475 | 6.0 | 0.45 | 0.53 | 0.58 | 0.86 | 1.14 |
| MSS7341-224ML_ | 220 | 20 | 0.660 | 0.710 | 5.0 | 0.35 | 0.41 | 0.47 | 0.57 | 0.78 |
| MSS7341-474ML_ | 470 | 20 | 1.21 | 1.45 | 3.0 | 0.24 | 0.28 | 0.32 | 0.43 | 0.57 |
| MSS7341-684KL_ | 680 | 20 | 1.85 | 1.98 | 2.5 | 0.22 | 0.27 | 0.29 | 0.42 | 0.56 |
6.6 × 6.6 mm footprint Shielded Power Inductors MSS7341-332_L_

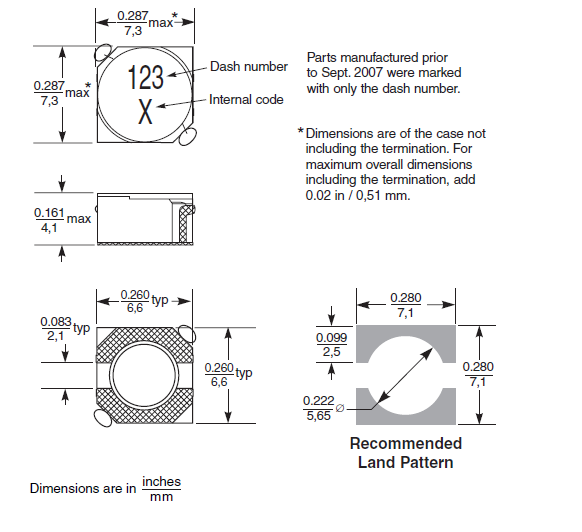

Shape and Dimensions:
