Description:
• Low profile, small footprint power inductor
• 2.5 × 3.2 mm footprint; 1.55 mm tall
Core material Ferrite
Terminations RoHS compliant tin-silver over tin over nickel over
silver. Other terminations available at additional cost.
Weight 46 – 48 mg
Ambient temperature –40°C to +85°C with Irms current
Maximum part temperature +125°C (ambient + temp rise)
Storage temperature Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging 2000/7″ reel; 7000/13″ reel Plastic tape: 12 mm wide,
0.25 mm thick, 4 mm pocket spacing, 2.25 mm pocket depth
| Part number |
Inductance (μH) |
DCR max (Ohms) |
SRF typ (MHz) |
Isat (A) | Irms (A)6 | |||
|
10% drop |
20% drop |
30% drop |
20°C rise |
40°C rise |
||||
| ME3215-102ML_ | 1.0 ±20% | 0.058 | 100 | 2.32 | 2.62 | 2.80 | 1.70 | 2.30 |
| ME3215-222ML_ | 2.2 ±20% | 0.107 | 64 | 1.62 | 1.84 | 2.00 | 1.30 | 1.70 |
| ME3215-332ML_ | 3.3 ±20% | 0.170 | 55 | 1.22 | 1.40 | 1.50 | 1.05 | 1.45 |
| ME3215-472ML_ | 4.7 ±20% | 0.245 | 43 | 1.06 | 1.20 | 1.30 | 0.83 | 1.14 |
| ME3215-103KL_ | 10 ±10% | 0.505 | 26 | 0.71 | 0.81 | 0.85 | 0.60 | 0.79 |
| ME3215-153KL_ | 15 ±10% | 0.773 | 26 | 0.58 | 0.65 | 0.70 | 0.48 | 0.65 |
| ME3215-223KL_ | 22 ±10% | 1.00 | 19 | 0.50 | 0.57 | 0.61 | 0.42 | 0.56 |
| ME3215-333KL_ | 33 ±10% | 1.48 | 17 | 0.42 | 0.47 | 0.51 | 0.35 | 0.48 |
| ME3215-473KL_ | 47 ±10% | 2.33 | 15 | 0.33 | 0.38 | 0.41 | 0.35 | 0.48 |
| ME3215-683KL_ | 68 ±10% | 3.40 | 12 | 0.28 | 0.31 | 0.34 | 0.24 | 0.32 |
| ME3215-104KL_ | 100 ±10% | 4.67 | 10 | 0.23 | 0.26 | 0.27 | 0.18 | 0.25 |
ME3215-102ML_ Low profile small footprint power inductor for TV and camera

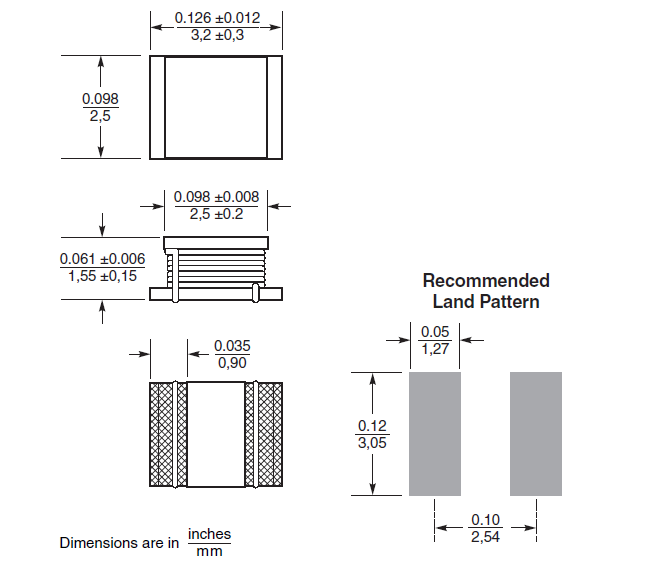

Shape and Dimensions:
