1000Base-T Ethernet Magnetic Transformers H1028NL 28.58*16.26*5.84mm
Price:
Supportive
MOQ:
100/500/1000
Delivery Time:
Stock or 3 weeks
Brand:
Shareway
Product Description
28.58*16.26*5.84mm 1000Base-T Ethernet Magnetic Transformers H1028NL
Description:
- 10/100Base-TX Dual Port Transformer Modules For Use with Transceivers Requiring 1:1 Transmit and Receiving Turns Ratios
- RoHS reflow temperature rating 245°C
- Meets IEEE 802.3 specification
- Some models offer AutoMDIX capability
Electrical Specifications @ 25°C - Operating Temperature 0°C to +70°C
| Part Number |
Insertion Loss (dB MAX) |
Return Loss (dB TYP) |
Crosstalk (dB TYP) |
Differential to Common Mode Rejection (dB MIN) |
Hipot (Vrms MIN) |
|||||||
| 0.1-100 MHz | 2-30 MHz | 40 MHz | 50 MHz | 60-80 MHz | 1 MHz | 30 MHz | 60 MHz | 100 MHz | 1-60 MHz | 60-200 MHz | ||
| H1028NL | -0.5 | -21 | -17 | -14.5 | -12 | -65 | -55 | -45 | -35 | -45 | -35 | 1500 |
| H1200NL | -1.0 | -16 | -14.4 | -13 | -12 | -50 | -45 | -40 | -35 | -37 | -35 | 1500 |
28.58*16.26*5.84mm 1000Base-T Ethernet Magnetic Transformers H1028NL

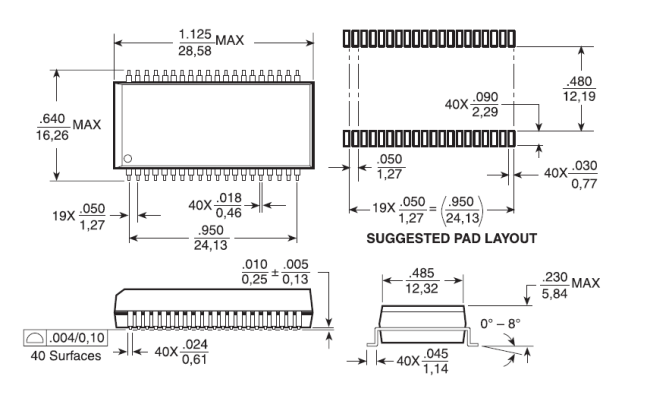

Shape and Dimensions:
