4+4 pins 0.4g Weight SMT Common Mode Choke H6500NL with RoHS Certification
Price:
Supportive
MOQ:
100/500/1000
Delivery Time:
Stock or 3 weeks
Brand:
Shareway
Product Description
4+4 pins 0.4g Weight SMT Common Mode Choke H6500NL with RoHS
Description:
- SMT COMMON MODE CHOKES for PoE+ Applications
- RoHS peak reflow temperature rating 245°C
- Meets IEEE 802.3 specification
Electrical Specifications @ 25°C - Operating Temperature 0°C to +70°C
| Part Number |
SRF (TYP) |
MAX Inter-winding Capacitance (pF) |
Leakage Inductance (μH MAX) |
OCL (±35%) |
DC Resistance (Ω MAX) |
Impedance Curves |
| H6500NL | 110 MHz | 8 | 0.12 | 15 μH | 0.15 | 1 |
| H6501NL | 60 MHz | 15 | 0.15 | 30 μHv | 0.20 | 2 |
| H6502NL | 42 MHz | 18 | 0.20 | 60 μH | 0.25 | 3 |
| H6503NL | 26 MHz | 25 | 0.25 | 100 μH | 0.30 | 4 |
| H6504NL | 7.0 MHz | 10 | 0.20 | 250 μHv | 0.18 | 5 |
| H6505NL | 5.5 MHz | 18 | 0.25 | 500 μH | 0.28 | 6 |
| H6506NL | 2.6 MHz | 30 | 0.30 | 1 mH | 0.35 | 7 |
| H6507NL | 300 MHz | 120 | 1.0 | 20 mH | 1.50 | 8 |
4+4 pins 0.4g Weight SMT Common Mode Choke H6500NL with RoHS

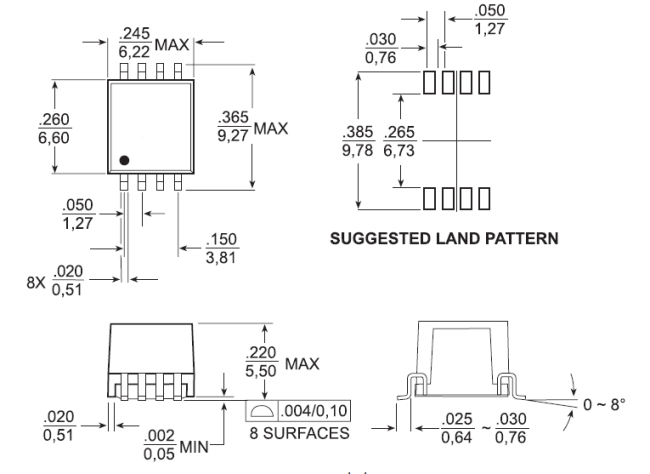

Shape and Dimensions:
