China 17.65*12.19*4.57mm Gigabit Ethernet Lan Transformer H5015NL with RoHS for sale

17.65*12.19*4.57mm Gigabit Ethernet Lan Transformer H5015NL with RoHS

Price Negotiable
Price: Supportive
MOQ: 100/500/1000
Delivery Time: Stock or 3 weeks
Brand: Shareway
Product Description

17.65*12.19*4.57mm Gigabit Ethernet Lan Transformer H5015NL with RoHS

Description:

  • 17.65*12.19*4.57mm size lan transformer
  • 10/100/1000Base-T Transformer
  • 4 Core number transformer
  • Small Electrical Stabilized Voltage Transformer
  • low inductance module for network
  • 100% Electrical Testing

Size: 17.65*12.19*4.57mm

Type: Gigabit lan transformer

Pin: 24 pins

Inductance: 350 min

Speed: 1000Base-T

Mounting: SMD type

Turns Ratio: 1CT∶1CT

Hipot: 1500Vrms MIN

Operating Temperature: 0℃～70℃.





17.65*12.19*4.57mm Gigabit Ethernet Lan Transformer H5015NL with RoHS

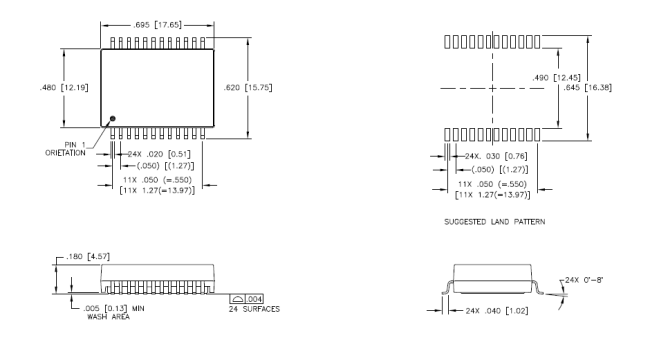

Shape and Dimensions:
