Single port Ethernet Magnetic Transformers SCG7029NL meet IEEE802.3 requirements

Price Negotiable
Price: Supportive
MOQ: 100/500/1000
Delivery Time: Stock or 3 weeks
Brand: Shareway
Product Description

single port lan telecom transformer SCG7029NL meet IEEE802.3 requirements


Description:

1. Turns Ratio50KHz, 0.5V

Chip side: Line side=1CT: 1CT+_2%

2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:

Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

40MHz: -14.4dB Min

50MHz: -13.1dB Min

60-80MHz: -12dB Min

100MHz: -10dB Min

5. Differential to Common Mode Rejection:

30MHz: -45dB Min

60MHz: -40dB Min

100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

60MHz: -35dB Min

100MHz: -30dB Min

7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec

Chip side to Line side





single port lan telecom transformer SCG7029NL meet IEEE802.3 requirements

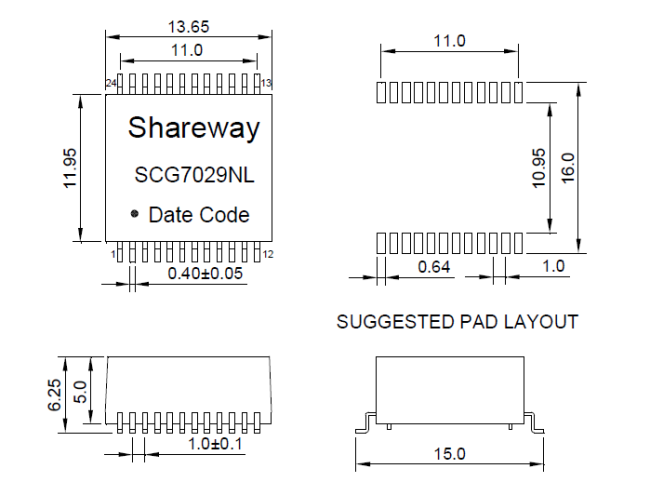

Shape and Dimensions:
