HM1225NL 8+8 Pins Ethernet (NON PoE) 100BASE-T Lan Transformator Electric

Description:

1. Compliant with IEEE 802.3u
2. 350µH OCL with 8mA bias, MSL: 3
3. IC grade transfer-molded package withstands
4. 235°C peak temperature profile. RoHS version withstands 245°C
5. AS9100C Certified (Based on and including ISO 9001:2008)

Electrical Specifications @ 25°C

Isolation Voltage: 1,500Vrms
OCL @100KHz, 8mA: 350µH min
CMR (0.1-100MHz): -40dB typ
Crosstalk (0.1-100MHz): -40dB min
Insertion Loss (0.1-100MHz) -1.1dB max
Return Loss (0.5-30MHz): -18dB min
(40MHz): -15.5dB min
(50MHz): -13.6dB min
(60-80MHz): -12dB min

HM1225NL 8+8 Pins Ethernet (NON PoE) 100BASE-T Lan Transformator Electric

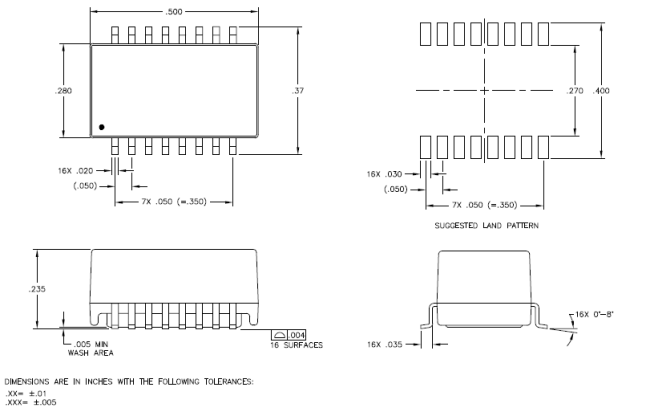

Shape and Dimensions:
