SMD 47470SC bobbin-wound surface-mount inductors to reduce EMI
Price:
Supportive
MOQ:
100/500/1000
Delivery Time:
Stock or 3 weeks
Brand:
Shareway
Product Description
SMD 47470SC bobbin-wound surface-mount inductors to reduce EMI
FEATURES:
- RoHS compliant
- 1.0μH to 1.0mH
- Up to 10A IDC
- Bobbin format
- Surface mount
- Integral EMI shield
- Compact size
- Tape and reel packaging
- UL 94V-0 materials
- J-STD-020-C reflow
The 4700S series is a range of bobbin-wound,
surface-mount inductors designed for use in
switching power supply, and power line filter
circuits. The parts are suitable for any application
requiring a high saturation current in a low-profile
package. The devices have an integral ferrite
shield to reduce EMI.
| Order Code | Inductance (10kHz, 100mVAC) ±20% |
DC Current | DC Resistance | SRF | Q Factor | |
| Nom. | Max. | Max. | Typ. | Typ. | ||
| μH | A | mΩ | MHz | Q | @ f (MHz) | |
| 47470SC | 47 | 1.9 | 168 | 11 | 23 | 1 |
| 47680SC | 68 | 1.6 | 210 | 9 | 23 | 1 |
| 47101SC | 100 | 1.3 | 267 | 8 | 20 | 0.8 |
| 47151SC | 150 | 1.1 | 410 | 7 | 19 | 0.8 |
| 47221SC | 220 | 0.8 | 629 | 6 | 20 | 0.8 |
| 47331SC | 330 | 0.7 | 940 | 5 | 21 | 0.8 |
| 47471SC | 470 | 0.58 | 1330 | 5 | 23 | 0.8 |
| 47681SC | 680 | 0.48 | 1780 | 4 | 17 | 0.8 |
| 47102SC | 1000 | 0.40 | 2540 | 4 | 17 | 0.8 |
SMD 47470SC bobbin-wound surface-mount inductors to reduce EMI

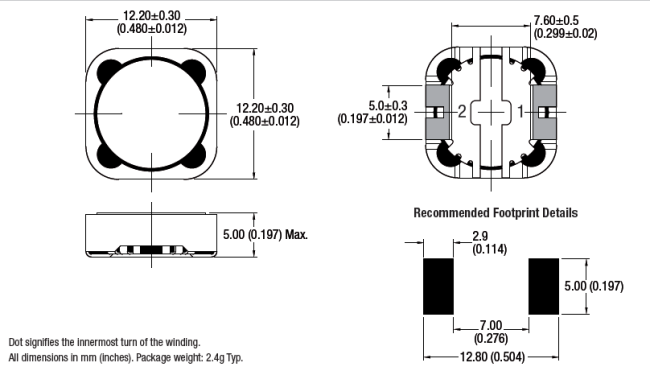

Shape and Dimensions:
