Pure tin dip Common Mode Choke 412R7C For switching power supplies
Price:
Supportive
MOQ:
100/500/1000
Delivery Time:
Stock or 3 weeks
Brand:
Shareway
Product Description
Pure tin dip Common Mode Choke 412R7C For switching power supplies
DESCRIPTION:
The 4100 series is a range of surface mount
toroidal inductors designed for use in switching
power supplies and DC/DC converters. The parts
are ideal for applications requiring low profi le
compact components in a surface mount package.
| Order Code | Inductance (10kHz, 10mVAC) |
Inductance Range (10kHz, 10mVAC) |
DC Current | DC Resistance |
| Nom. | Min. - Max. | Max. | Max. | |
| μH | μH | A | mΩ | |
|
412R7C
|
2.7 | 2.1 - 3.5 | 8.1 | 14 |
| 414R7C | 4.7 | 3.3 - 5.4 | 6.7 | 18 |
| 416R8C | 6.8 | 4.7 - 7.8 | 5.7 | 20 |
| 41100C | 10 | 7.3 - 12.2 | 4.7 | 24 |
| 41150C | 15 | 10.6 - 17.6 | 4.0 | 28 |
| 41220C | 22 | 15.8 - 26.3 | 3.3 | 33 |
| 41330C | 33 | 23.8 - 39.6 | 2.7 | 38 |
| 41470C | 47 | 35.5 - 59.2 | 2.2 | 62 |
| 41680C | 68 | 52.2 - 87.0 | 1.75 | 110 |
| 41101C | 100 | 75.2 - 125 | 1.47 | 158 |
| 41151C | 150 | 114 - 189 | 1.16 | 247 |
| 41221C | 220 | 164 - 274 | 1.03 | 377 |
| 41331C | 330 | 247 - 412 | 0.83 | 462 |
Pure tin dip Common Mode Choke 412R7C For switching power supplies

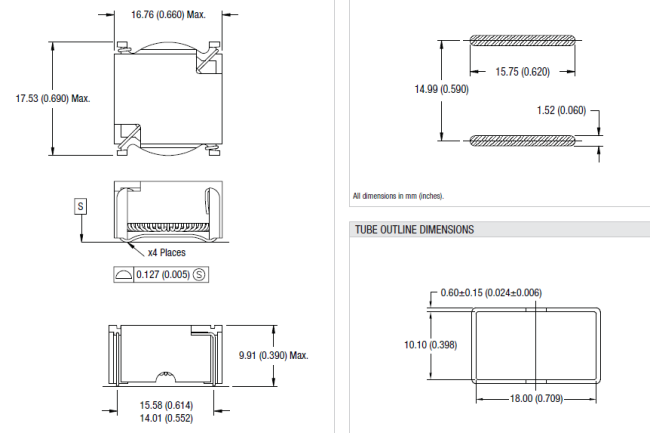

Shape and Dimensions:
