High Inductance SMD Power Inductor / High Current Power Inductors MOX-SPI-1205PM Series
Price:
Supportive
MOQ:
100/500/1000
Delivery Time:
Stock or 3 weeks
Brand:
Shareway
Product Description
High inductance high current MOX-SPI-1205PM series SMD Power Inductor
Description:
MOX-SPI-1205PM series are designed to be used as single, coupled or (1:1) transformer applications. Engineered to provide high inductance, high current handling and high efficiency.
Features:
- Low cost.
- RoHS compliant.
- Parallel connection mode.
- Perfect for DC-DC converters and VRM/VDC controllers.
- High inductance, high current industrial design.
| Part Number | Inductance (μH) | Inductance @ 0Adc (μH ± 20%) | Tolerance (±) | DCR (Ω Max.) | Saturation Current Isat (-30%) | Heating Current IDC (+40ºC)A |
| MOX-SPI-1205PM-1R4M | 1.40 | 1.4 | 20% | 2.90 | 31.0 | 13.0 |
| MOX-SPI-1205PM-2R0M | 2.00 | 2.0 | 20% | 3.70 | 25.0 | 13.0 |
| MOX-SPI-1205PM-2R8M | 2.80 | 2.8 | 20% | 5.40 | 21.0 | 10.0 |
| MOX-SPI-1205PM-4R7M | 4.70 | 4.8 | 20% | 9.20 | 16.0 | 8.1 |
| MOX-SPI-1205PM-6R8M | 6.80 | 7.4 | 20% | 12.0 | 13.0 | 7.2 |
| MOX-SPI-1205PM-8R2M | 8.20 | 8.9 | 20% | 15.0 | 12.0 | 6.2 |
| MOX-SPI-1205PM-100M | 10.0 | 10.5 | 20% | 17.0 | 11.0 | 6.0 |
| MOX-SPI-1205PM-150M | 15.0 | 14.0 | 20% | 24.0 | 9.60 | 5.0 |
| MOX-SPI-1205PM-220M | 22.0 | 23.0 | 20% | 39.0 | 7.60 | 3.9 |
| MOX-SPI-1205PM-330M | 33.0 | 34.0 | 20% | 59.0 | 6.20 | 3.2 |
| MOX-SPI-1205PM-470M | 47.0 | 27.0 | 20% | 72.0 | 5.30 | 2.9 |
| MOX-SPI-1205PM-660M | 66.0 | 66.0 | 20% | 110.0 | 4.40 | 2.4 |
| MOX-SPI-1205PM-800M | 80.0 | 80.0 | 20% | 140.0 | 4.10 | 2.0 |
| MOX-SPI-1205PM-101M | 100.0 | 100.0 | 20% | 160.0 | 3.60 | 1.9 |
| MOX-SPI-1205PM-151M | 150.0 | 150.0 | 20% | 250.0 | 3.00 | 1.6 |
| MOX-SPI-1205PM-221M | 220.0 | 220.0 | 20% | 380.0 | 2.40 | 1.3 |
| MOX-SPI-1205PM-331M | 330.0 | 330.0 | 20% | 570.0 | 2.00 | 1.0 |
| MOX-SPI-1205PM-471M | 470.0 | 470.0 | 20% | 860.0 | 1.70 | 0.83 |
| MOX-SPI-1205PM-681M | 680.0 | 680.0 | 20% | 1100.0 | 1.40 | 0.75 |
| MOX-SPI-1205PM-821M | 820.0 | 830.0 | 20% | 1400.0 | 1.30 | 0.64 |
| MOX-SPI-1205PM-102M | 1000.0 | 1000.0 | 20% | 1600.0 | 1.10 | 0.61 |
High inductance high current MOX-SPI-1205PM series SMD Power Inductor

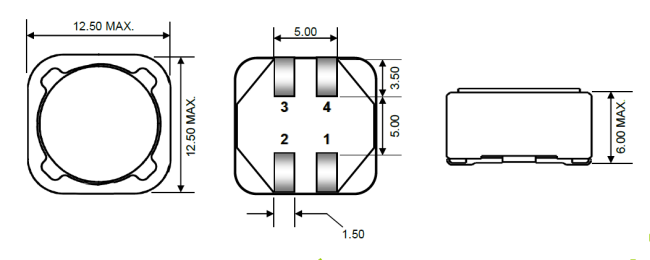

Shape and Dimensions:
