Straight RJ45 Modular Jack JD3-0001NL 1000Base - T 1 X 1 Single Port
Price:
Supportive
MOQ:
100/500/1000
Delivery Time:
Stock or 3 weeks
Brand:
Shareway
Product Description
1000Base-T 1*1 Single Port Straight RJ45 Modular Jack JD3-0001NL
RJ45 connector Detailed description:
1.VOLTAGE RATING:125 VAC RMS
2.CURRENT RATING:1.5 AMP
3.CONTACT RESISTANCE:30 MILLIOHMSMAX
4.INSULATION RESISTANCE:500 MEGOHMS MIN@500 NDC
5.DIELECTRIC STRENGTH:1000 VAC RMS 50Hz or 60Hz,1min.
MECHANICAL:
1.HOUSING&INSERT MATERIAL:PBT UL94V-0
2.CONTACT MATERIAL :DIAMETER0.45MM PHOSPHOR BRONZE GOLD PLATING OVER NICKEL.
3.SHIELD:0.20¬0.25MM, THICKNESS BRASS WITH NI PLATED.
4.MATING/UNMATING FORCE:2.2KG.F MAX
1000Base-T 1*1 Single Port Straight RJ45 Modular Jack JD3-0001NL

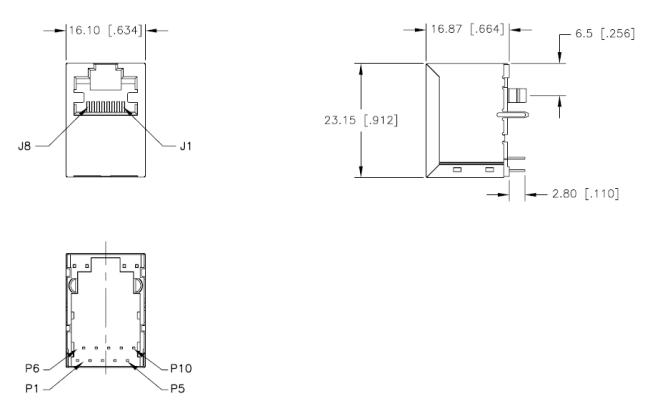

Shape and Dimensions:
