33.81 * 36.8 * 34.29mm Common Mode Choke Inductor 1.10 Ohms DCR H7010-A
Price:
Supportive
MOQ:
100/500/1000
Delivery Time:
Stock or 3 weeks
Brand:
Shareway
Product Description
33.81*36.8*34.29mm High Inductance Common Mode Line Chokes H7010-A
Description:
High inductance common mode line chokes H7010-A
Size: 33.81*36.8*34.29mm
Type:Common Mode Choke
Terminations:Tin-silver over tin over copper
|
Part number |
Inductance (mH) |
Current (Amps) |
SRF (kHz) |
DCR (Ohms) |
| H7010-AL | 56.5 | 1 | 62 | 1.10 |
| H7011-AL | 34.8 | 1.25 | 96 | 0.720 |
| H7012-AL | 23.6 | 1.5 | 104 | 0.465 |
| H7013-AL | 19.8 | 2 | 128 | 0.350 |
| H7014-AL | 7.38 | 2.5 | 190 | 0.160 |
| H7015-AL | 5.36 | 3 | 220 | 0.115 |
| H7016-AL | 4.10 | 4 | 275 | 0.080 |
| H7017-AL | 2.09 | 5 | 370 | 0.045 |
| H7018-AL | 0.966 | 6 | 556 | 0.025 |
| H7019-AL | 0.753 | 8 | 640 | 0.017 |
33.81*36.8*34.29mm High Inductance Common Mode Line Chokes H7010-A

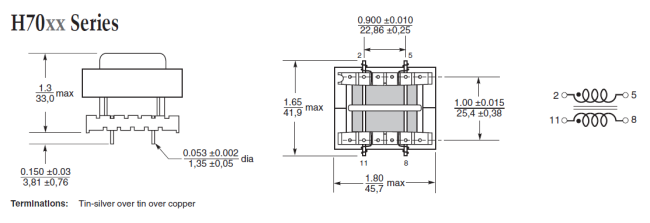

Dimensions:
