High Inductance Common Mode Choke 35.6 * 22.86 * 35.6mm P3216-A
35.6*22.86*35.6mm High Inductance Series Common Mode Line Chokes P3219-AL
Description:
Their single layer windings provide for the highest common mode impedance over the widest frequency range.These common mode line chokes come in two series: Standard and High Inductance. Both are well suitable for switching power supplies operating in the 100-300 kHz range of switching frequencies.
• UL1446 Class B (130°C) Insulation System
(UL File E83628)
• Creepage and clearance = 3.2 mm
• 1250 Vrms, one minute isolation between windings
|
Part number |
Inductance min (mH) |
Current rating (Amps) |
Leakage inductance max (μH) |
SRF typ (kHz) |
DCR max (Ohms) |
Interwinding isolation (Volts rms) |
Lead diameter nom |
Weight (g) |
| P3219-AL | 10.8 | 1.3 | 165 | 125 | 0.29 | 1250 | 0.051/1,29 | 36.0 |
| P3220-AL | 7.0 | 2.0 | 100 | 225 | 0.15 | 1250 | 0.051/1,29 | 38.3 |
| P3221-AL | 3.7 | 3.2 | 60 | 400 | 0.08 | 1250 | 0.051/1,29 | 38.7 |
| P3222-AL | 2.2 | 5.0 | 35 | 600 | 0.04 | 1250 | 0.051/1,29 | 40.4 |
| P3223-AL | 1.1 | 8.1 | 20 | 900 | 0.02 | 1250 | 0.040/1,02 | 40.9 |
| P3224-AL | 0.58 | 8.1 | 10 | 1150 | 0.01 | 1250 | 0.051/1,29 | 40.9 |
35.6*22.86*35.6mm High Inductance Series Common Mode Line Chokes P3219-AL

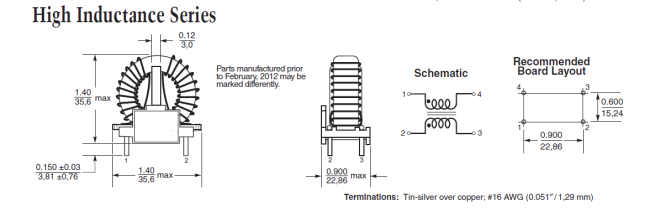

Dimensions:
