1.2 - 33 UH Surface Mount Power Inductors For Power Supplies 4.0 * 4.0 * 1.2mm
Price:
Supportive
MOQ:
100/200/500
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
1.2-33uH SMD Power Inductor MOX-SLI-4012 for power supplies with RoHS
Description:
- Low cost.
- Magnetically shielded construction.
- Ultra low profile package.
- Operating temperature: -40°C to +105°C.
- Excellent solderability & resistance to soldering heat.
- RoHS compliant.
| Part Number | Inductance (μH) |
Test Frequency |
RDC ( mΩ ) ±20% |
IDC1 (A) | IDC2 (A) |
| MOX-SLI-4012-1R2N | 1.2±30% | 0.1V/100KHz | 53 | 2.20 | 2.30 |
| MOX-SLI-4012-1R5N | 1.5±30% | 0.1V/100KHz | 64 | 1.80 | 1.90 |
| MOX-SLI-4012-2R2N | 2.2±30% | 0.1V/100KHz | 82 | 1.60 | 1.70 |
| MOX-SLI-4012-3R3N | 3.3±30% | 0.1V/100KHz | 95 | 1.50 | 1.52 |
| MOX-SLI-4012-4R7M | 4.7±20% | 0.1V/100KHz | 135 | 1.20 | 1.30 |
| MOX-SLI-4012-6R8M | 6.8±20% | 0.1V/100KHz | 162 | 1.10 | 1.24 |
| MOX-SLI-4012-8R2M | 8.2±20% | 0.1V/100KHz | 205 | 1.00 | 1.08 |
| MOX-SLI-4012-100M | 10±20% | 0.1V/100KHz | 250 | 0.85 | 0.96 |
| MOX-SLI-4012-120M | 12±20% | 0.1V/100KHz | 290 | 0.75 | 0.92 |
| MOX-SLI-4012-150M | 15±30% | 0.1V/100KHz | 375 | 0.72 | 0.84 |
| MOX-SLI-4012-180M | 18±20% | 0.1V/100KHz | 440 | 0.65 | 0.71 |
| MOX-SLI-4012-220M | 22±20% | 0.1V/100KHz | 630 | 0.62 | 0.58 |
| MOX-SLI-4012-270M | 27±20% | 0.1V/100KHz | 740 | 0.50 | 0.50 |
| MOX-SLI-4012-330M | 33±20% | 0.1V/100KHz | 835 | 0.45 | 0.48 |
1.2-33uH SMD Power Inductor MOX-SLI-4012 for power supplies with RoHS

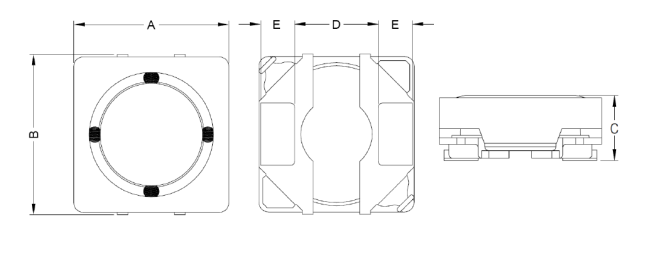

Dimensions:
A:4.0mm
B:4.0mm
C:1.2mm
D:2.1mm
E:0.9mm
