SCG7029NL 5 Channel 10GBASE-T Poe Lan Transformer 30- Pin Single Port Isolation Modules
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
SMD 5 Channel 10GBASE-T 30-Pin Single Port Isolation Modules 824-00462R
ELECTRICAL SPECIFICATION @25℃:
| PARAMETERS | UNIT | EACH CHANNEL |
| Turns Ratio (Primary):(Secondary) | - | 1CT:1CT ± 2% |

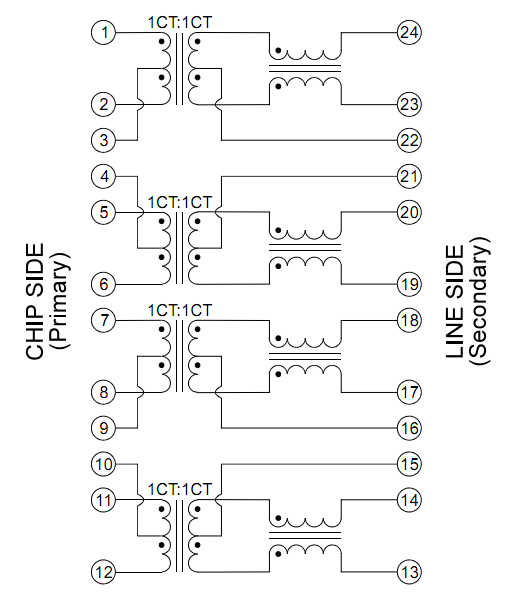

| Polarity (Primary):(Secondary) | - | Per Schematic |
| Inductance , L s (Primary ) @100KHz , 0.1Vrms | uH | 350 Min |
| Insertion Loss @0.3-100MHz | dB | 1.0 Min |
| Return Loss @0.5-40MHz | dB | 18 Min |
| Return Loss @40-60MHz | dB | 15 Min |
| Return Loss @60-80MHz | dB | 12 Min |
| Return Loss @80-100MHz | dB | 10 Min |
| CMRR @0.3-32MHz | dB | 42 Min |
| CMRR @32-100MHz | dB | 33 Min |
| Crosstalk @0.3-100MHz , between channels | dB | 35 Min |
| Hipot (Primary):(Secondary) | Vrms | 1500 Min |

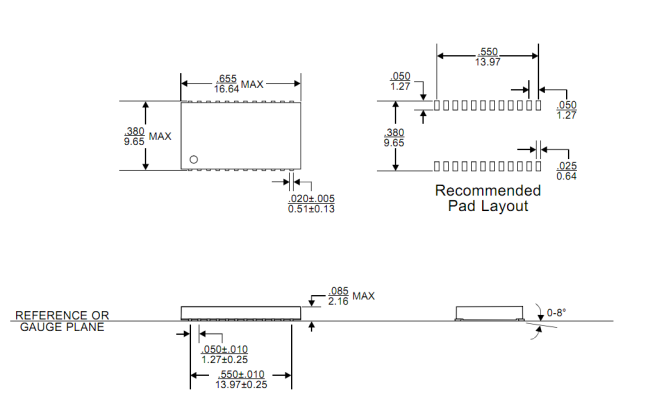

Dimensions:
