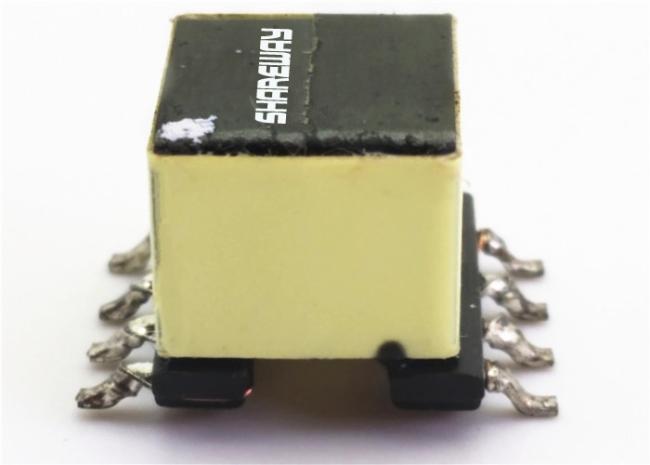

Small Switching Power Transformer EP-624SG SMD 4+4 Pins For Telecommunications
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
EP-624SG small transformer SMD 4+4 pins for Telecommunications
Electrical Specifications:
| Part Number | EP-624SG |
| Turns Ratio(±3%) | 1:0.19:0.667 |
| OCL(uH±10%) @100KHz,0.1V | L0A=155 L0.65A≥90%(L0A ) |
| LK(uH max) @100KHz,0.1V | 4.0 |
| DCR (mΩ max) 3-4 | 414 |
| DCR (mΩ max) 2-1 | 822 |
| DCR (mΩ max) 5,6-7,8 | 36 |
| HI-POT (Vrms) | 1500 |
| RoHS | RoHS Compliant |
| Operating temperature range | -40 ℃ to +125℃ |
| Size | 11.45x12.5x15.24mm |
Applications:
1. Switching power output and smoothing circuits
2. Used as choke coil for high frequency SMPs
3. Countermeasure against spike ripples
4.EMI/RFI filters
5.DC/DC converters
6.IP and OP devices
