SMD Choke Surface Mount Inductor MDR43SG1R0MC / MDR43SG1R5MC 1.0 To 6.8uH For Camcorders
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
MDR43SG1R0MC / MDR43SG1R5MC 1.0 to 6.8uH SMD choke for Camcorders
Feature:
- RoHS compliant
- Small size: 5.8x5.2x3.2mm
- Operating temperature rang: -40℃~85℃
- Storage termperature rang: -40℃ ~ 125℃
- Pin finish : Hot dipped tin
- Packing: 2000pcs per reel
| Part number |
Inductance (uH) |
Tolerance (±%) |
DCR MAX (Ω) |
Isat (A) |
Irms (A) |
| MDR43SG1R0MC | 1.0 | 20 | 0.03 | 4.0 | 4.0 |
| MDR43SG1R5MC | 1.5 | 20 | 0.04 | 3.5 | 3.5 |
| MDR43SG2R2MC | 2.2 | 20 | 0.06 | 2.6 | 2.6 |
| MDR43SG3R3MC | 3.3 | 20 | 0.07 | 2.0 | 2.0 |
| MDR43SG4R7MC | 4.7 | 20 | 0.08 | 1.9 | 1.9 |
| MDR43SG6R8MC | 6.8 | 20 | 0.14 | 1.6 | 1.6 |

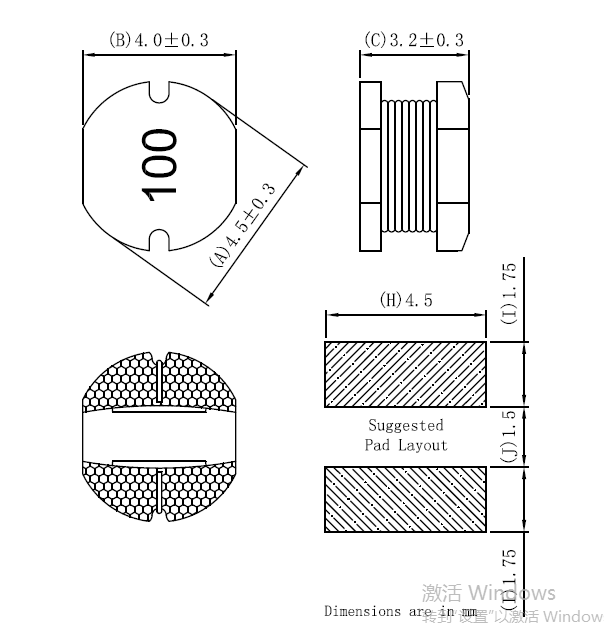

Dimensions:
