High Current Smd Shielded Power Inductor , Low Profile Power Inductor MHA201612NSGR22M
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
MHA201612NSGR22M Molding Power Inductor for High Current Power Supplies
Application:
- Low profile , high current power supplies
- DC/DC converters
- Battery powered devices
- PDA / notebook / desktop / server applications
| Part number | Inductance (uH±20%) | DCR(mΩ)@25℃ TYP | DCR(mΩ)@25℃ Max | Irms(A) | Isat(A) |
| MHA201612NSGR22M | 0.22 | 13 | 16 | 4.77 | 5.2 |
| MHA201612NSGR24M | 0.24 | 16 | 20 | 4.2 | 4.9 |
| MHA201612NSGR47M | 0.47 | 29 | 35 | 3.8 | 3.6 |
| MHA201612NSGR1R0M | 1.0 | 48 | 58 | 2.35 | 3.0 |
| MHA201612NSGR1R5M | 1.5 | 89 | 104 | 2.0 | 2.2 |
| MHA201612NSGR2R2M | 2.2 | 132 | 155 | 1.8 | 1.9 |

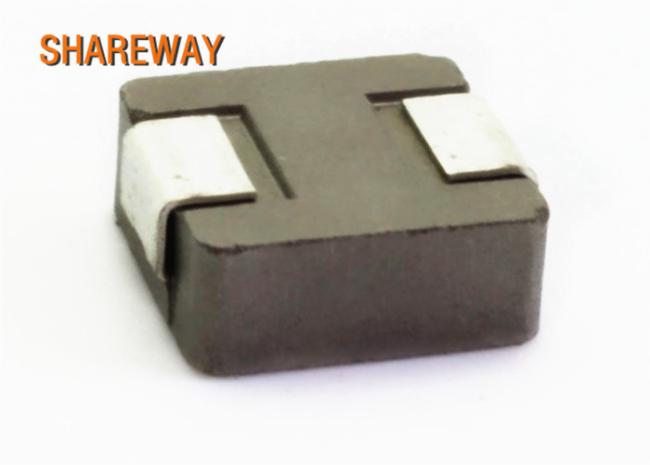

Picture:
