0.33~2.2uH Molding SMD Power Inductor Surface Mount MHA302510NSGR33M / MHA302510NSG2R2M
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
MHA302510NSGR33M / MHA302510NSG2R2M 0.33~2.2uH Molding SMD Inductor
Description:
| Part number | Inductance (uH±20%) | DCR(mΩ)@25℃ TYP | DCR(mΩ)@25℃ Max | Irms(A) | Isat(A) |
| MHA302510NSGR33M | 0.33 | 15 | 18 | 5.0 | 6.0 |
| MHA302510NSGR47M | 0.47 | 20 | 25 | 3.9 | 5.7 |
| MHA302510NSG1R0M | 1.0 | 41 | 49 | 3.5 | 4.3 |
| MHA302510NSG1R5M | 1.5 | 66 | 80 | 2.3 | 3.6 |
| MHA302510NSG2R2M | 2.2 | 100 | 120 | 1.9 | 2.7 |
Note:
- Electrical specification at 25℃
- Inductance tested at 100KHz, 0.25Vrms
- Irms is the current that caused a approximate 40℃ temperature rise from 25 ambient
- Isat is the DC current at which inductance drop approximately 30% from its value without current

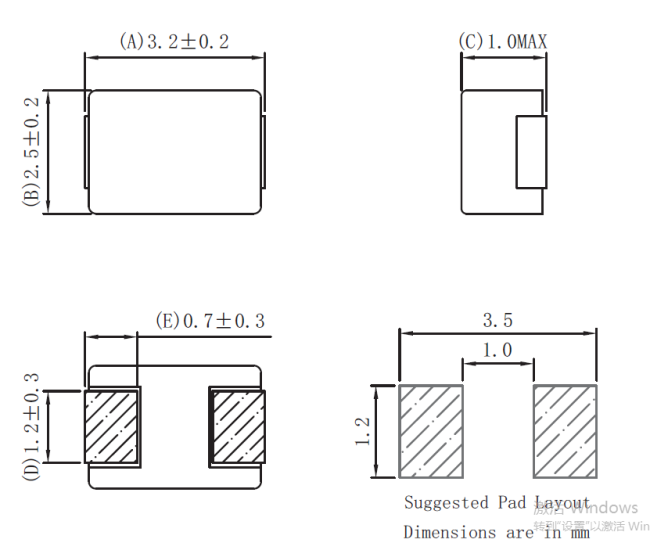

Dimensions:
