China Magnetic Shield Construction SMD Power Inductor MHA302512NSGR22M / MHA302512NSG150M for sale

Magnetic Shield Construction SMD Power Inductor MHA302512NSGR22M / MHA302512NSG150M

Price Negotiable
Price: Supportive
MOQ: 500/1000
Delivery Time: Stock Or 3 weeks
Brand: Shareway
Product Description

MHA302512NSGR22M / MHA302512NSG150M 3.2X2.5X1.2mm Battery inductor

Description:

  • Place of Origin:China (Mainland)
  • Brand Name: Shareway technology
  • Inductor : integrity inductor
  • Product name: integrated smd power inductor for car electronics
  • Inductance:0.47uh-2.2uh
  • Material: Magnetic powder
  • Coil: Embeded
  • Current range: 3.5A-6.3A
  • Temperature rise: ≤40°C
  • Dielectric strength: >150V
  • Operating temperature: -20 ° C ~ +85 ° C



Part number Inductance (uH±20%) DCR(mΩ)@25℃ TYP DCR(mΩ)@25℃ Max Irms(A) Isat(A)
MHA302515NSGR47M 0.47 13 16 6.3 7.2
MHA302515NSG1R0M 1.0 27 33 4.0 4.6
MHA302515NSG2R2M 2.2 73 88 3.5 3.7

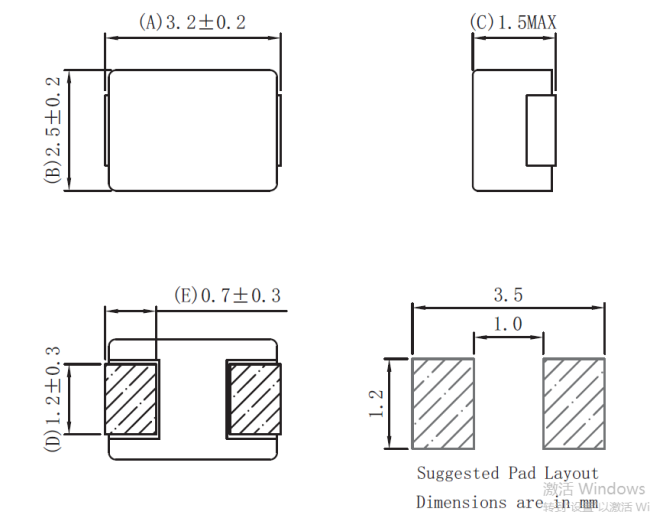

Dimensions:
