1000 Base -T DIP Ethernet Magnetic Transformers H2002DG / H2038DG RoHS Compliant

Price Negotiable
Price: Supportive
MOQ: 500/1000
Delivery Time: Stock Or 3 weeks
Brand: Shareway
Product Description

1000Base-T DIP Magnetic Transformer H2002DG / H2038DG 21.2x10.0x6.75mm


Description:

  • Meets IEEE 802.3 & ANSI X3.263 Standards
  • RoHS Compliant.
  • 100/1000 Base-T,Through-Hole Type .
  • Operating temperature range: 0℃ to +70℃.



Part Number

OCL(uH)

100KHz,0.1Vrms,

Turns Ratio
(±5%)
DC Bias

Operating

temperature

HI-POT

(Vrms)

H2001DG 350uH 1CT:1CT 8mA 0℃ to +70℃ 1500
H2002DG 350uH 1CT:1CT 8mA 0℃ to +70℃ 1500
H2005DG 350uH 1CT:1CT 8mA 0℃ to +70℃ 1500
H2038DG 350uH 1CT:1CT 8mA 0℃ to +70℃ 1500

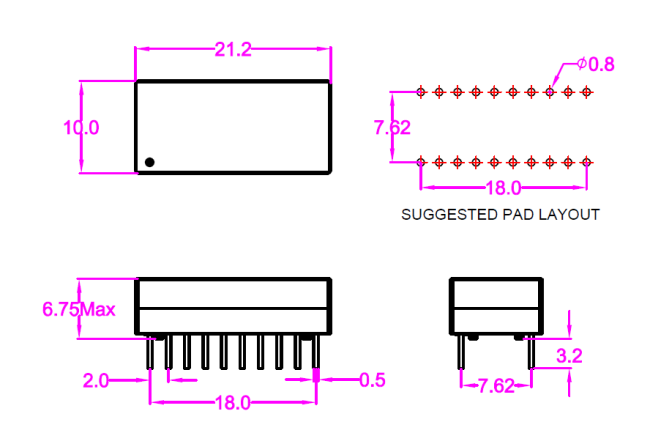

Dimensions:
