Female RJ45 Modular Vertical / Bottom Entry Model Jack JXD1-0008NL Solder Termination
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
JXD1-0008NL Vertical And Bottom-Entry Model RJ45 Female Jack
Description:
- 10/100M Single Port Transformer Modules
- 10-100M Single Port Transf. Mods.
- 10-100M 2×1 Port Tab
- 1000M 1×4 Port Transf. Modules
- 10-100M Single Port Dual USB(Height=29.4MM)
- 10-100M Single Port Vertical
- 10-100M PC Card Lan Magnetic
Electronical Specifications:
- 0 Turn Ratio @100KHz: (P1-P2):(J1-J2)=1:1±5% (P3-P6):(J3-J6)=1:1±5%
- 0 Primary Inductance: 350uH MIN @100KHz, 0.1V 8mA DC Bias
- 0 DC Resistance: (J1-J2):(J3-J6) 1.2 OHMS MAX
- 0 COMMON TO COMMON MODE ATTENUATION: 1-100MHz -30dB MIN
- Isolation: PHY Side to Line Side: 2250VDC

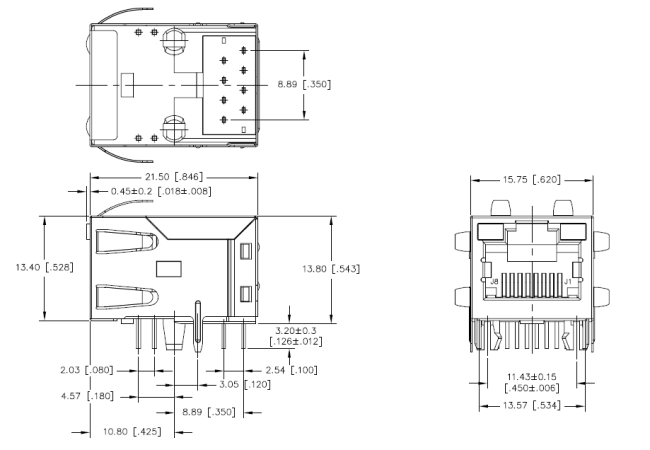

Dimension:
