Magnetic RJ45 Modular Jack 12 Pins 100 Base -T JXK0-0125NL POE/POE+ Application

Price Negotiable
Price: Supportive
MOQ: 500/1000
Delivery Time: Stock Or 3 weeks
Brand: Shareway
Product Description

100Base-T RJ45 Magnetic JXK0-0125NL For POE/POE+/POE++ Application


Material Specifications :
* Insert: Plastic: Reinforced FR PA66-B30 UL94V-0.
* Contact Area: Phosphor Bronze, Gold Plated,6U~50U Optional.
* PCB Terminal: Phosphor Bronze, Tail-Tin over Nickel
* Housing: Reinforced FR PA66-B30 UL94V-0.
* Metal Shell: Copper Alloy, Nickel Plated
* Case: Phenolic, UL94V-0 Black..

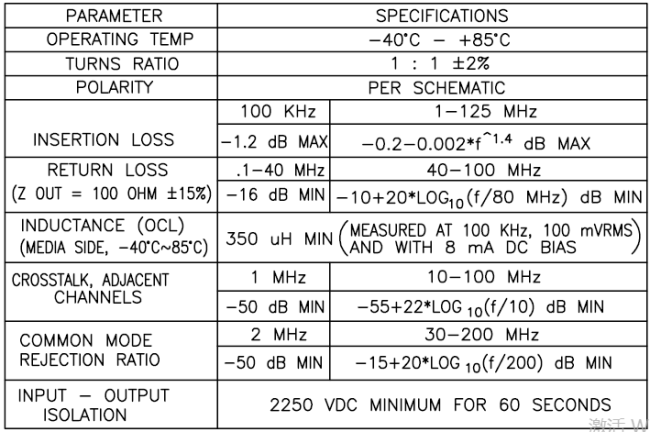

Specification:

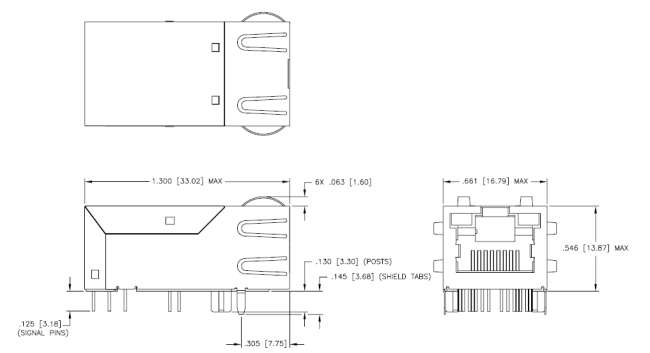

Dimensions:
