Length 25.4mm Vertical Rj45 Jack 1X4 Multiple Ports Tab Up RJ45 JXG0-0098NL
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
Length=25.4mm 1X4 Multiple ports Tab up RJ45 Jack JXG0-0098NL
Electrical Performance :
* Meets or exceeds IEEE 802.3 standard for 100Base-T.
* 350 uH minimum OCL with 8 mA bias current.
* High performance for maximum EMI suppression.
* Minimum 1500 Vrms isolation per IEEE 802.3 requirement.
* Operating temperature range: 0 0C to +70 0C.
* Storage temperature range: -40 0C to +85 0C.
Specifications:
| Product: |
Modular Jacks
|
| USOC Codes: | RJ45 |
| Number of Positions: |
8 Position
|
| Number of Ports: |
1 Port
|
| Mounting Style: |
Mounting Peg
|
| Mounting Angle: | Straight |
| Termination Style: |
Through Hole
|
| Shielding: | Shielded |
| Minimum Operating Temperature: |
- 40 C
|
| Maximum Operating Temperature: |
+ 85 C
|
| Contact Plating: | Gold |
| Gender: | Female |
| Housing Material: |
Thermoplastic
|
| Number of Contacts: | 8 Contact |

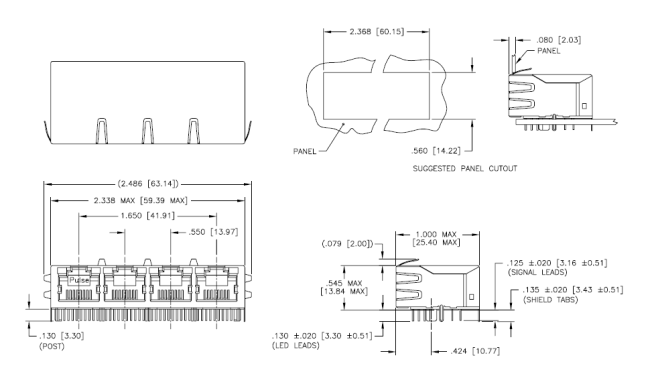

Dimensions:
