RoHS Board Lock Rj45 Ethernet Jack Copper Alloy Material JXD3-0002NL For Router
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
Board Lock Copper Alloy RJ45 Modular Jack JXD3-0002NL for Router
Electrical Specifications:
|
1.Inductance :
|
350uH,MIN @100KHZ,0.1Vrms,8mA DC Bias
|
|
2.Turns Ratio :
|
P1-2:J1-1=1CT:1+/-3%
|
|
|
P3-6:J3-6=1CT:1+/-3%
|
|
3.Insertion Loss :
|
1~100MHZ -1.0dB MAX.
|
|
4.Return Loss :
|
1~10MHZ -20dB MIN .Load 100 OHMS
|
|
|
10~30MHZ -16dB MIN .Load 100 OHMS
|
|
|
30~60MHZ -12dB MIN .Load 100 OHMS
|
|
|
60~80MHZ -10dB MIN .Load 100 OHMS
|
|
5.Common Mode Rejection :
|
1~50 MHZ -30dB MIN
|
|
|
50~100MHZ -20dB MIN
|
|
6.Cross Talk :
|
1~100MHZ -30dBMIN
|
|
7.Hi-Pot Test :
|
1500Vrms 60sec. @PCB Side to Cable Side
|

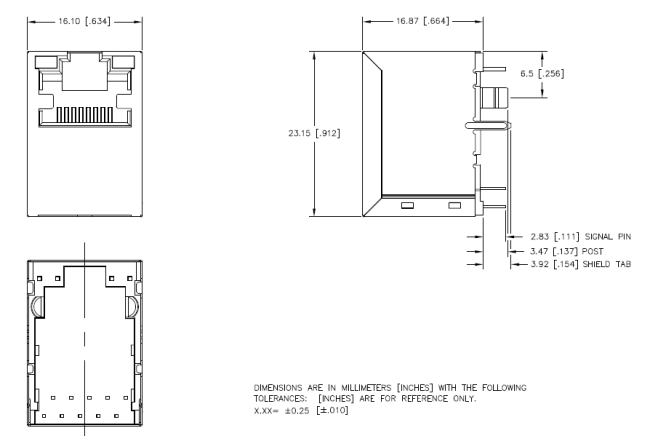

Dimensions:
